5 Axis CNC Waterjet Cutting Machine for 3D Bevel and Chamfer

HLWJ-4020P 5-Axis CNC Waterjet Cutting Machine for 3D, Bevel and Chamfer Work

A 5-axis waterjet machine that covers everything a conventional waterjet does, and then adds the part most buyers only discover they need later: multi-angle machining. With five-axis linkage the head cuts at any angle within a +/-60 degree range, so sloping, bevel, 3D and special-shaped profiles can be produced on the same machine that handles straight 2D work. The result is lower overall cost per part, a smaller footprint on the floor, and a wider range of processing technology available in your workshop.

Why the 5-axis capability matters

• Cut at any angle within +/-60 degrees - five-axis linkage handles sloping, bevel and 3D cuts that a 2D waterjet simply cannot produce.
• Repeatable precision - line accuracy +/-0.1 mm and angle accuracy +/-0.1 degree for high-end work on special-shaped surfaces.
• One machine, five operations - 2D, 3D, bevel, chamfer and rotary surface work without moving the job to a second machine.
• Wide material range - steel, stainless steel, marble, granite and foam.
• Automatic photography and CAD layout - the control system photographs and lays out parts automatically, which makes day-to-day operation easier for less experienced operators.
• Built for countertop work - bathroom countertops and washbasins can be processed as an integrated combination rather than as separate jobs.

Configuration

Typical work

• Bathroom countertops and washbasins - integrated combination processing of countertop and basin in one setup.
• Irregular and special-shaped surfaces - sloping, bevel, 3D and other profiles that standard waterjet cutting cannot reach.
• Stone and metal parts - marble, granite, steel, stainless steel and foam components for interior and industrial use.
• Custom design work - from simple designs to complex inlays, using the automatic CAD layout function.

Delivery, service and shipping

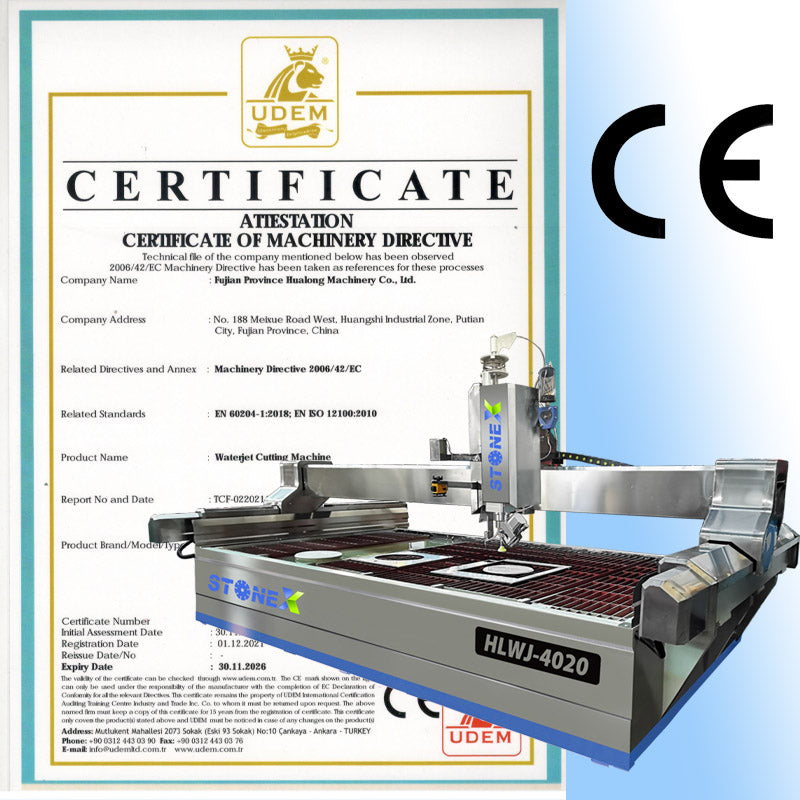

• Manufacturer background: more than 30 years of export experience, 81+ patents, CE certification, a production base of 36,454 square metres and over 300 employees.
• Professional engineers are available for on-site overseas service; a senior inspection team controls the full production process.
• Centralised procurement and flexible ODM customisation are supported - contact us with your part drawings for a configuration proposal.
• Freight is quoted per destination port - contact us for an FOB or door-to-door estimate before ordering.
