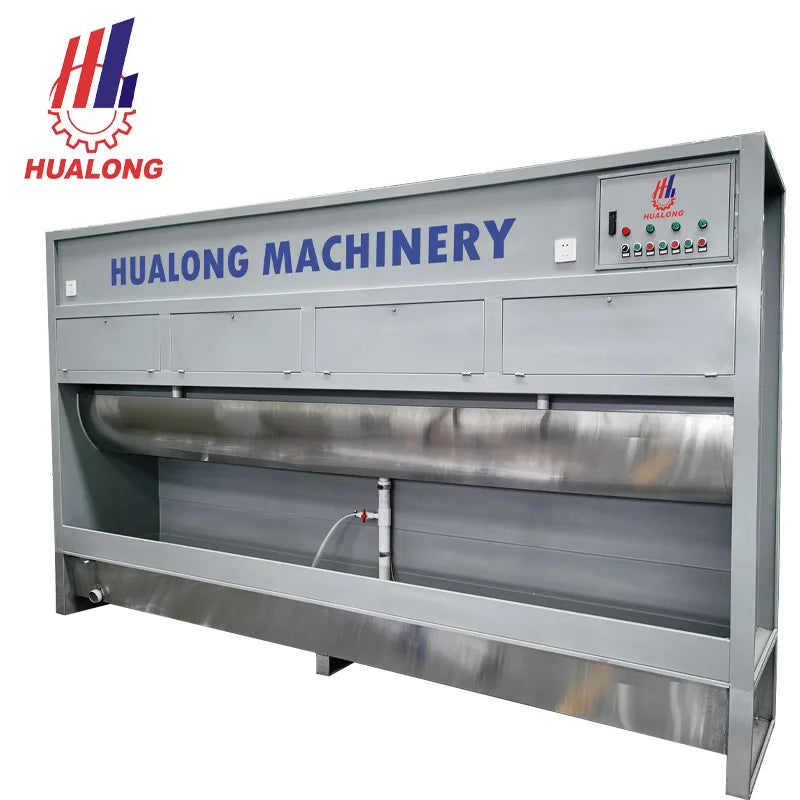

HUALONG Machinery Environmental Waterwall Wet Dust Extraction Collection Water Wall Spray Dust Collector

~~$3,650.00美元~~

Sale Sold out

Shipping calculated at checkout.

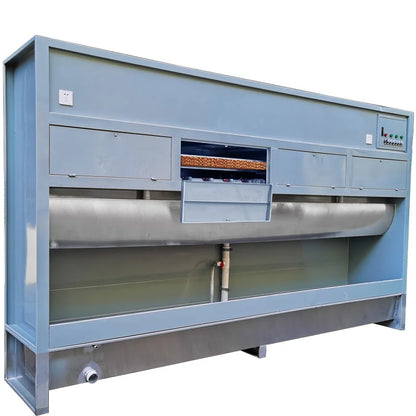

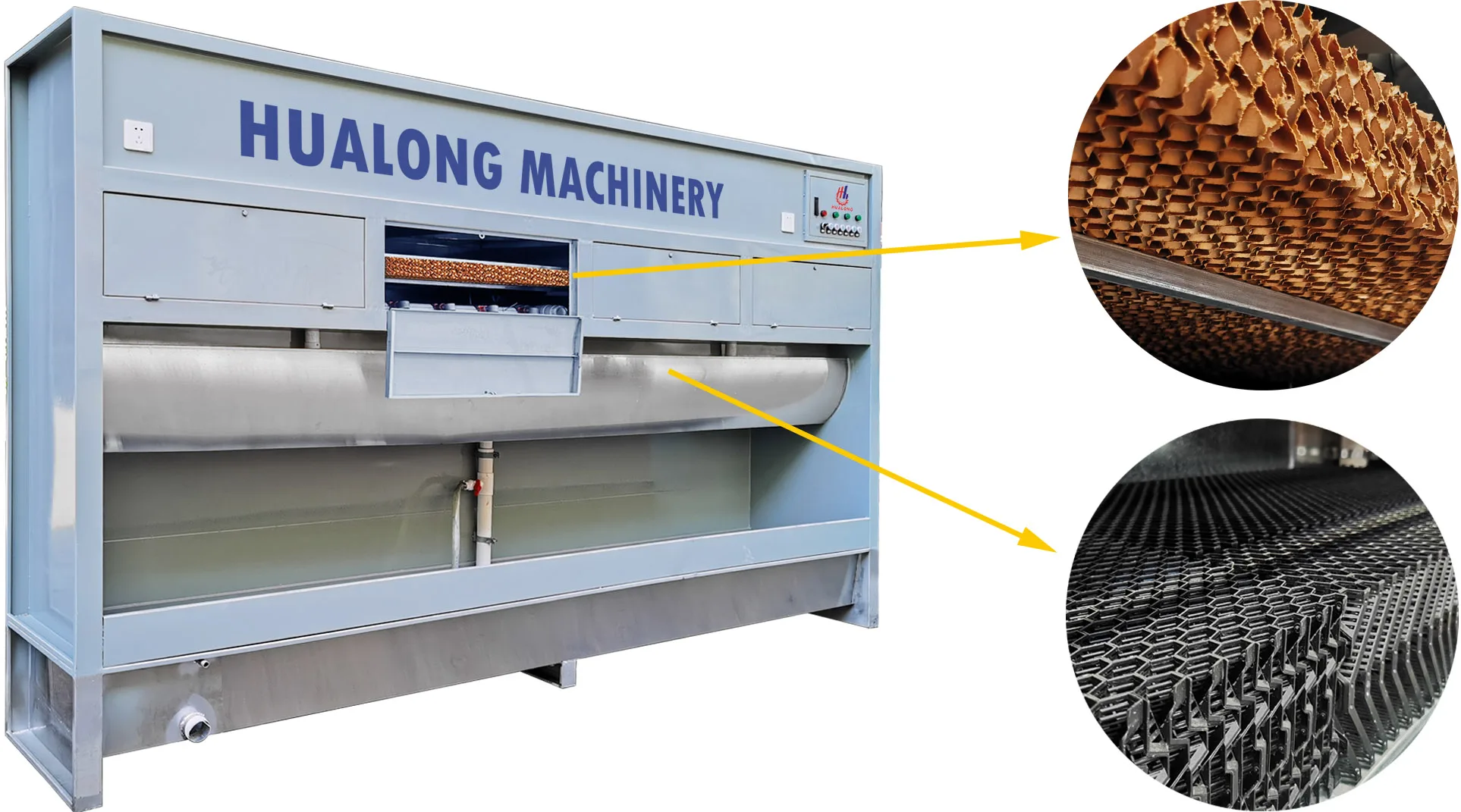

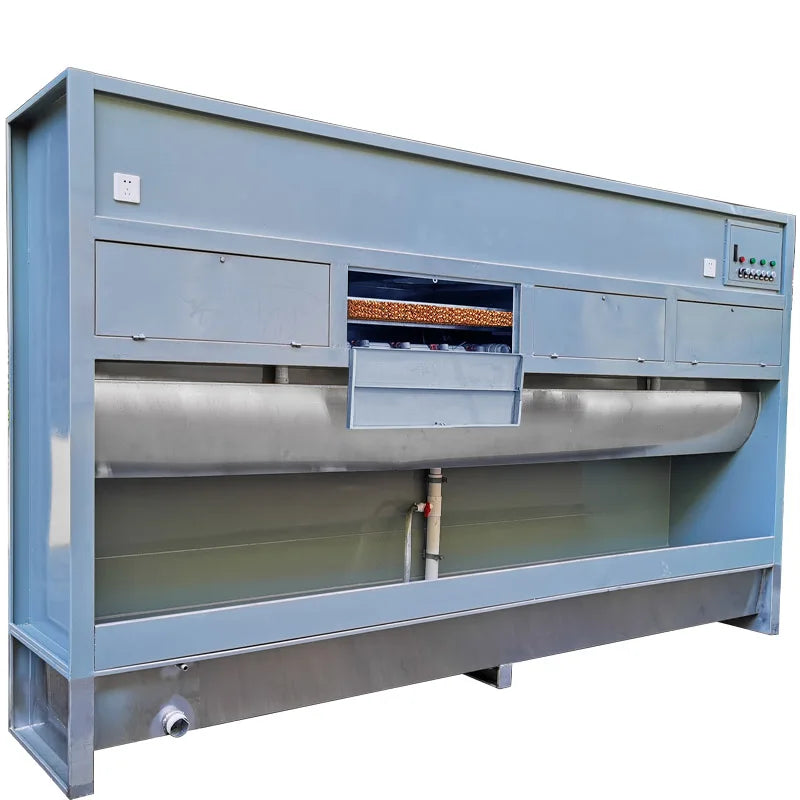

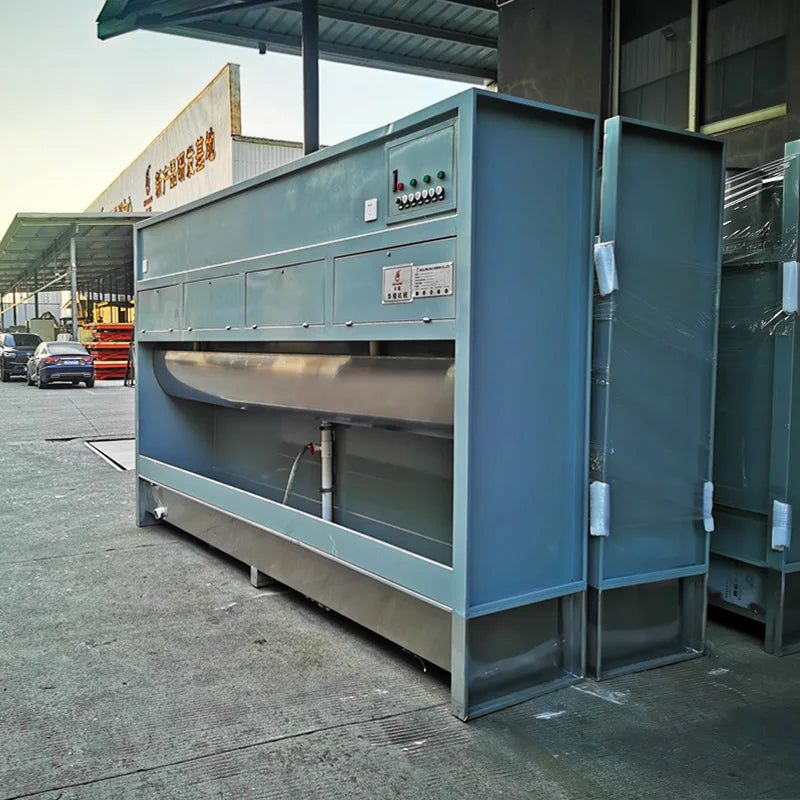

Water Curtain Dust Collector

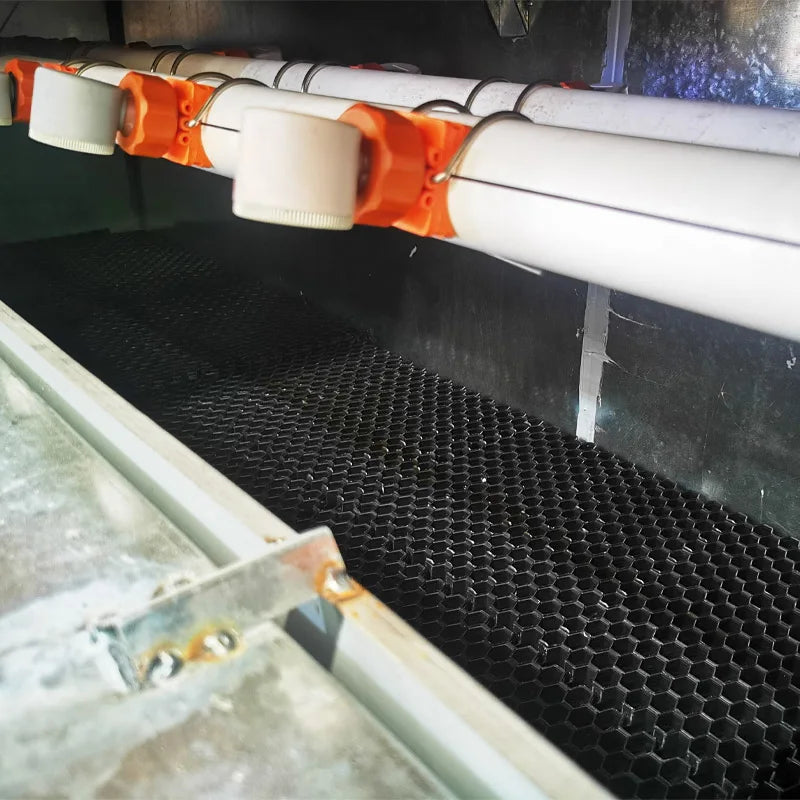

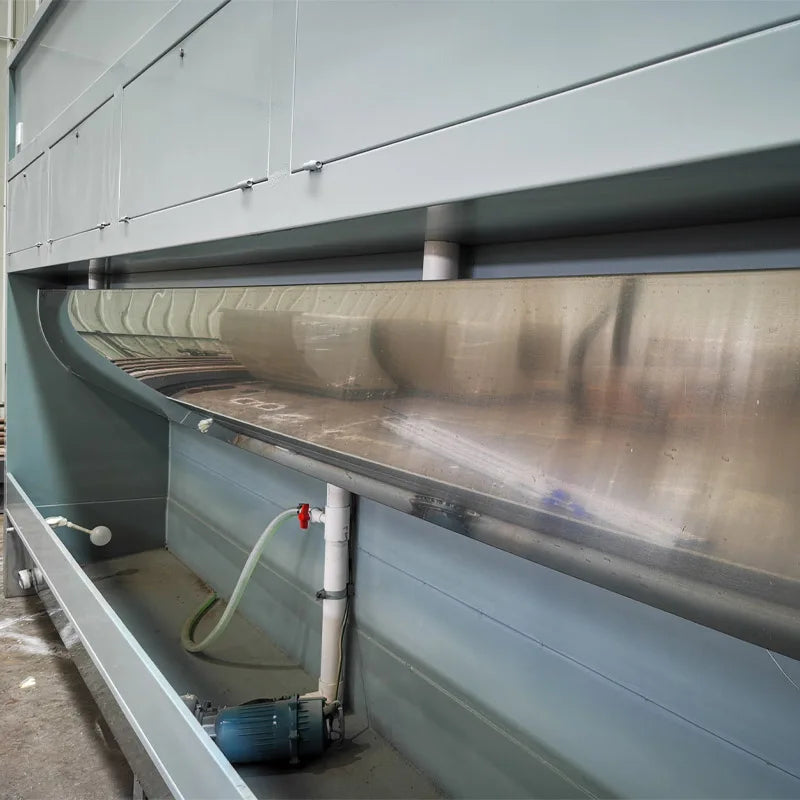

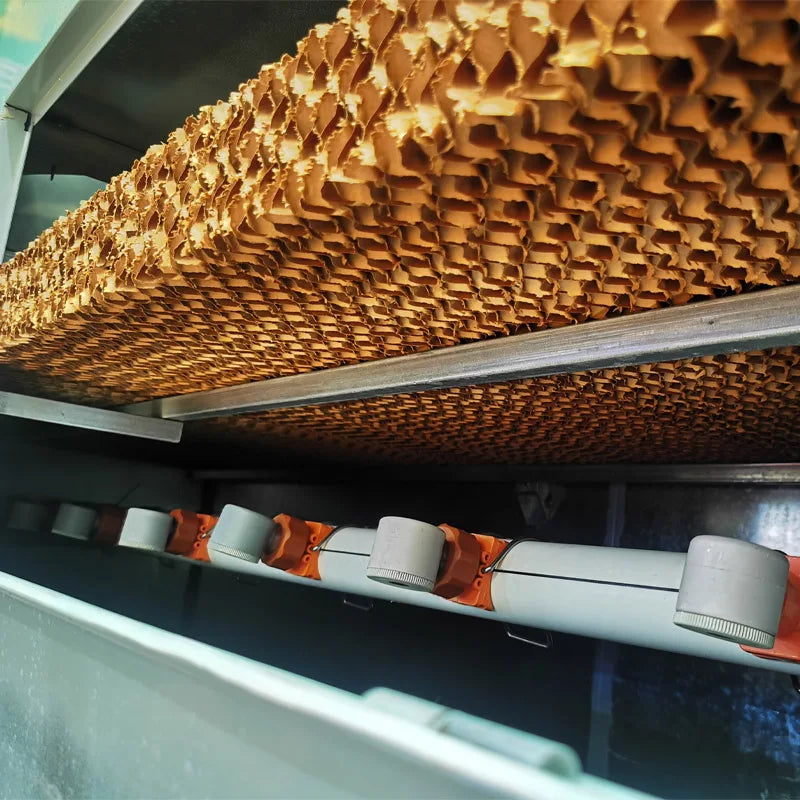

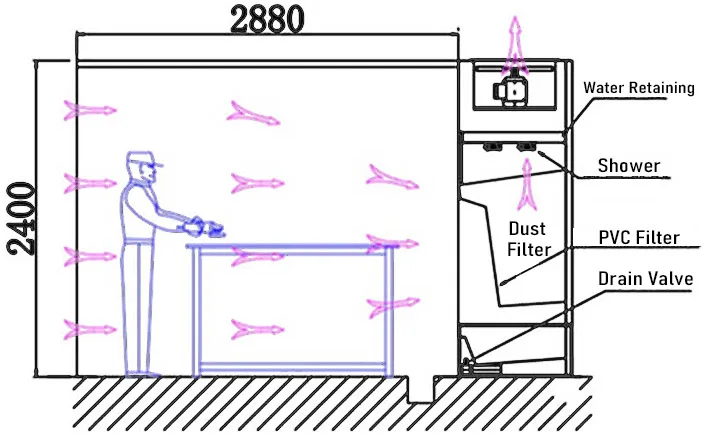

This enviromental equipment is used for clean polluted air. It can suck air containing paint mist or dust, has the air go through the water curtain and "boiling mixing channel", then separation, precipitation, eliminate harmful paint mist particles and dust particles. So as to provide the operators with a clean working environment.

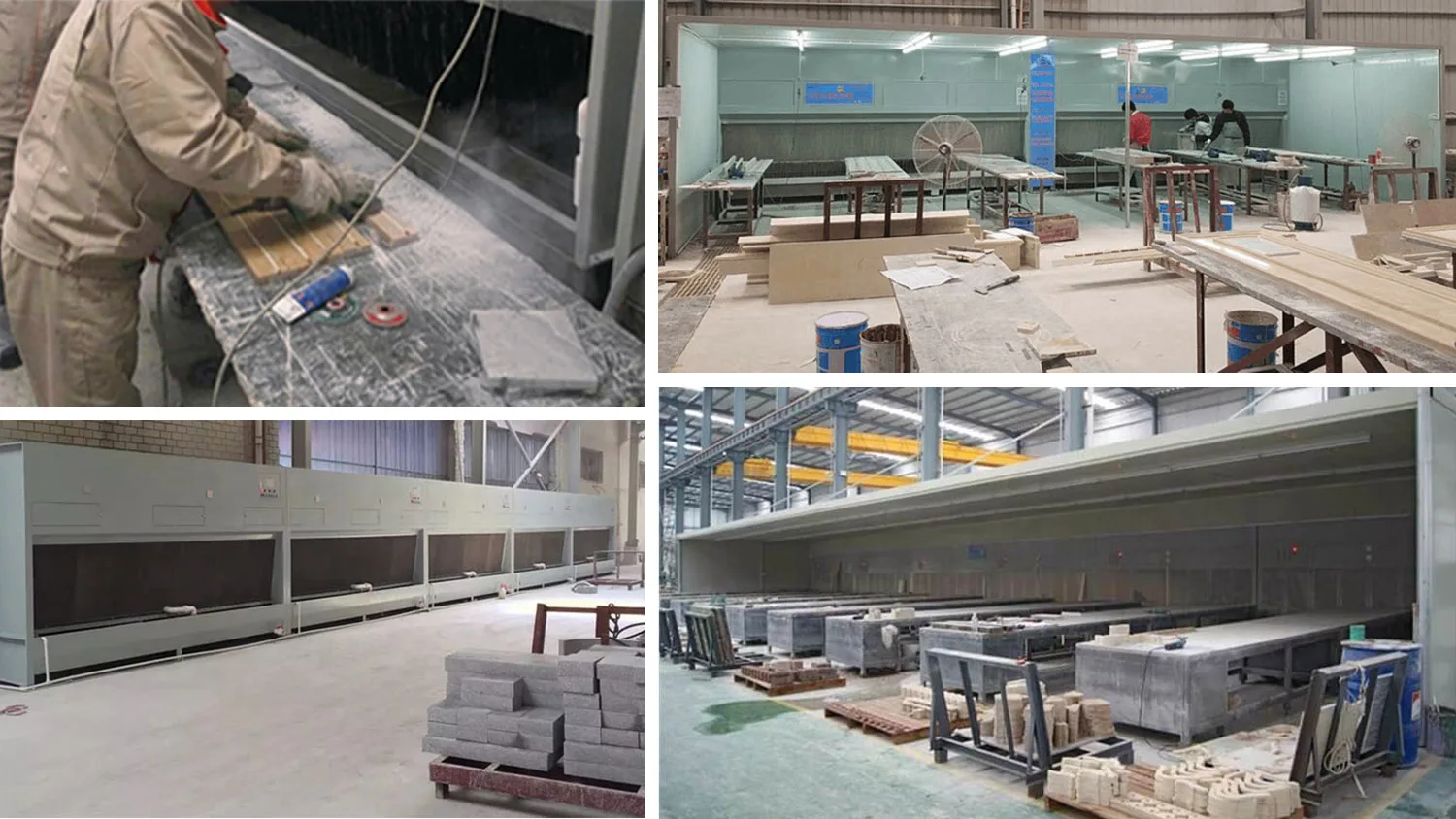

This equipment is widely used in stone factory, bathroom factory, ceramic factory, concrete, checmical, wood processing, spray booth and other workshop.

Main Features:

1) High sunction, good filtering effect.
2) Low power consumption, automatic cleaning.
3) Easy and convinient to maintain, never blocking.
4) Save space.

Technical Data
Item No.		HLCC-4M	HLCC-5M	HLCC-6M
Air Volume of Fan	m³/h	18700x3	18700x4	18700x5
Power of Fan	kw	1.1	1.1	1.1
Power of Water Mercury	kw	0.75	1.1	1.1
Intake Air Volumn	m³/h	35000-42000	45000-52000	60000-75000
Quantity of Fan	pc	3	4	5
Suction of Equipment	m/s	3.5-4.2	3.5-4.2	3.5-4.2
Dimensions (L x W x H)	mm	4000x2400x720	5000x2400x720	6000x2400x720
