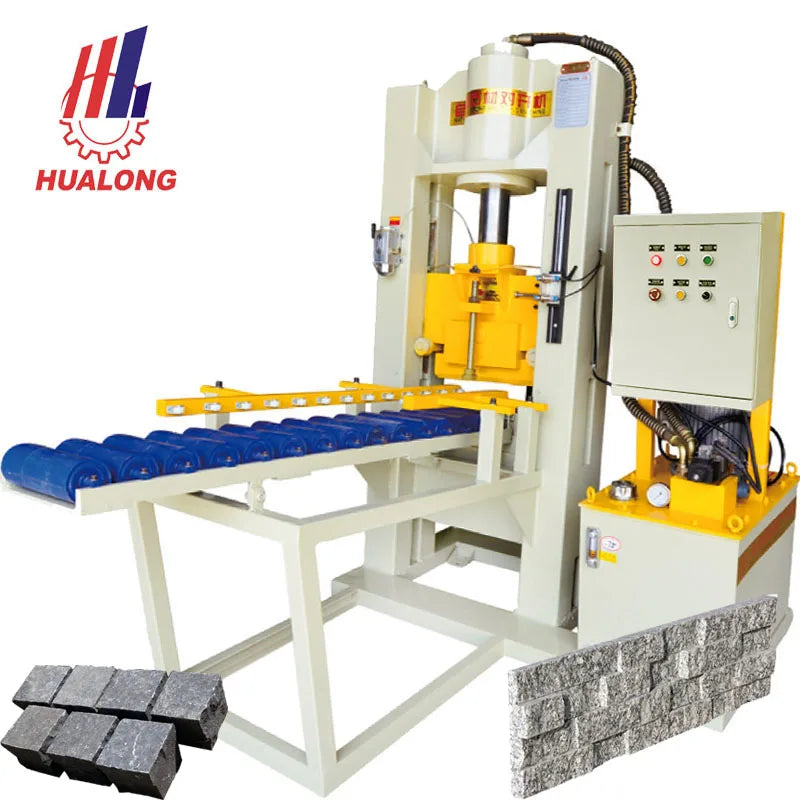

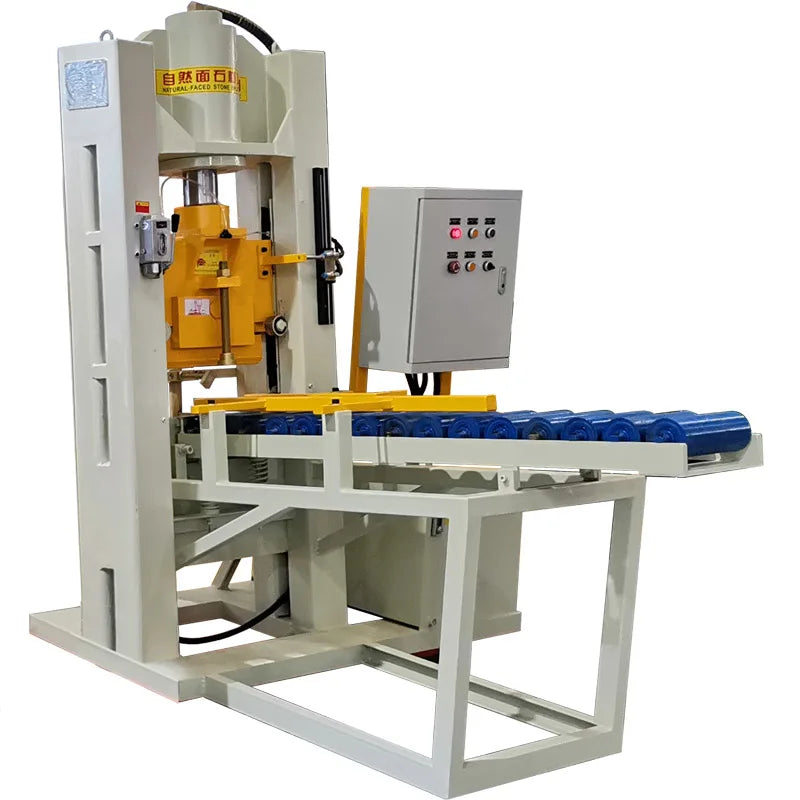

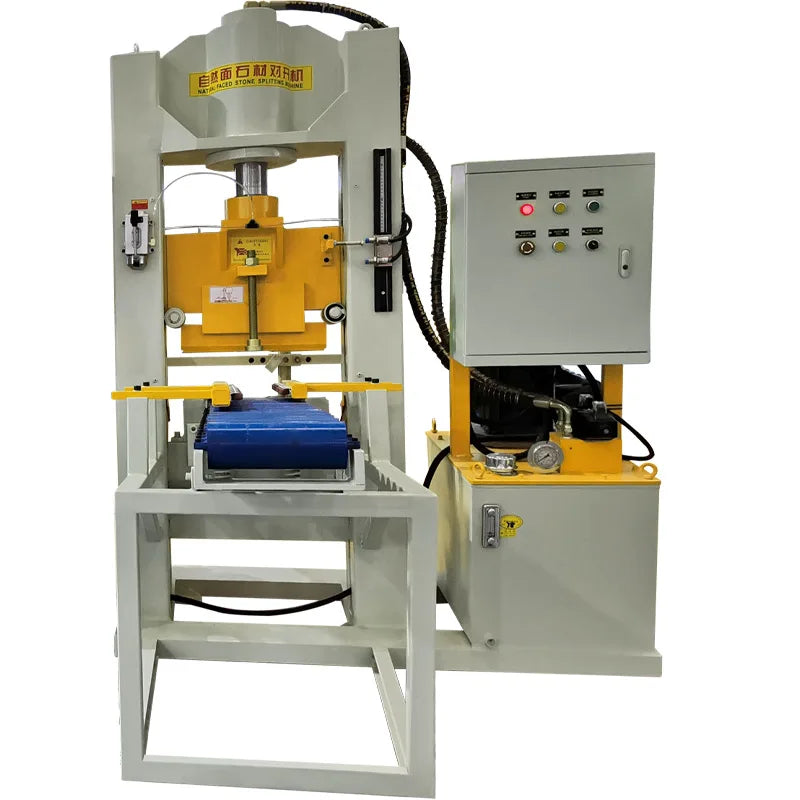

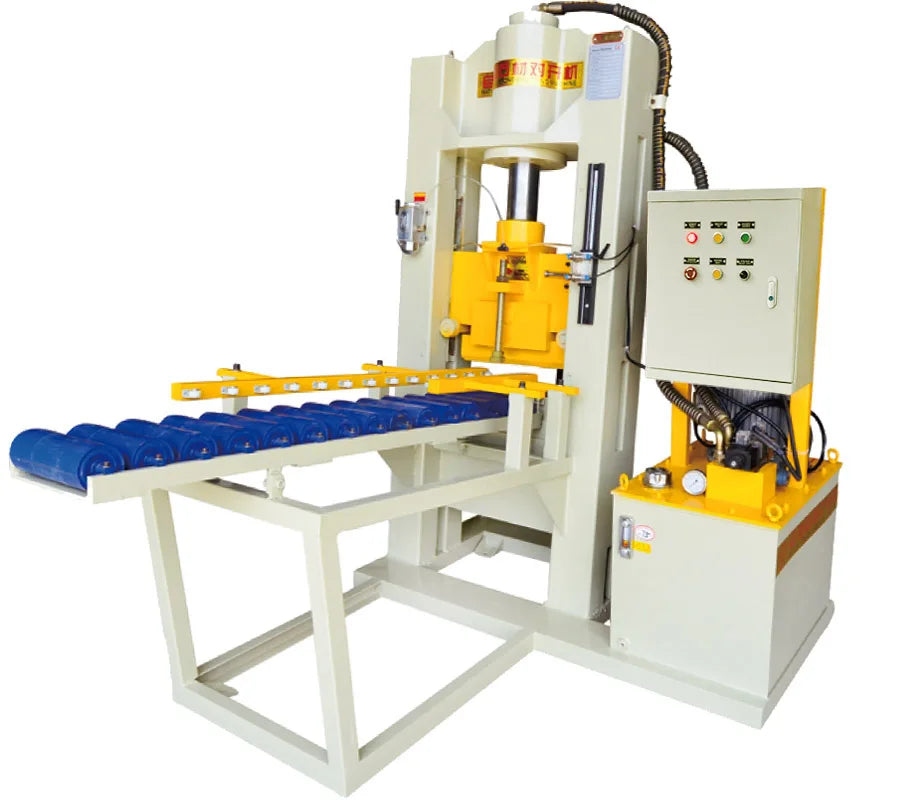

Stone Splitter for pavers & veneer panels
HLSY-C24z is designed for splitting natural stones with hydrauli driven. It can either split square column stone into pieces of cube blocks for paver, or split thick slabs with a rustic appearance for wall siding.
It is a dual purpose efficient equipment for producing paving stones and stone veneer panels.
Main Features
* Open frame machine model, simple to maintain
* Made of strong cast iron and high quality parts ensuring stability during working.
* Fast lift up movement improves the working efficiencty greatly .
* Heat-treated and hardened high-carbon steel chisels produce superior splits every time.
|
Technical Data
|
||
|
Model No.
|
HLSY-C24Z
|
|
|
Pressure force
|
ton
|
40
|
|
Blade feeding speed
|
mm/s
|
30
|
|
Max. working height
|
mm
|
200
|
|
Max. working width
|
mm
|
200
|
|
Output per hour
|
m2/h
|
15
|
|
Power
|
kw
|
4
|
|
Voltage / Frequency
|
V / Hz
|
380 / 50
|
|
Flow rate
|
L/M
|
14
|
|
Hydraulic oil grade
|
#
|
46
|
|
Oil tank capacity
|
L/kg
|
95/ 78
|
|
Gross weight
|
kg
|
1200
|
|
Dimensions ( L x W x H )
|
mm
|
1950x1450x1900
|

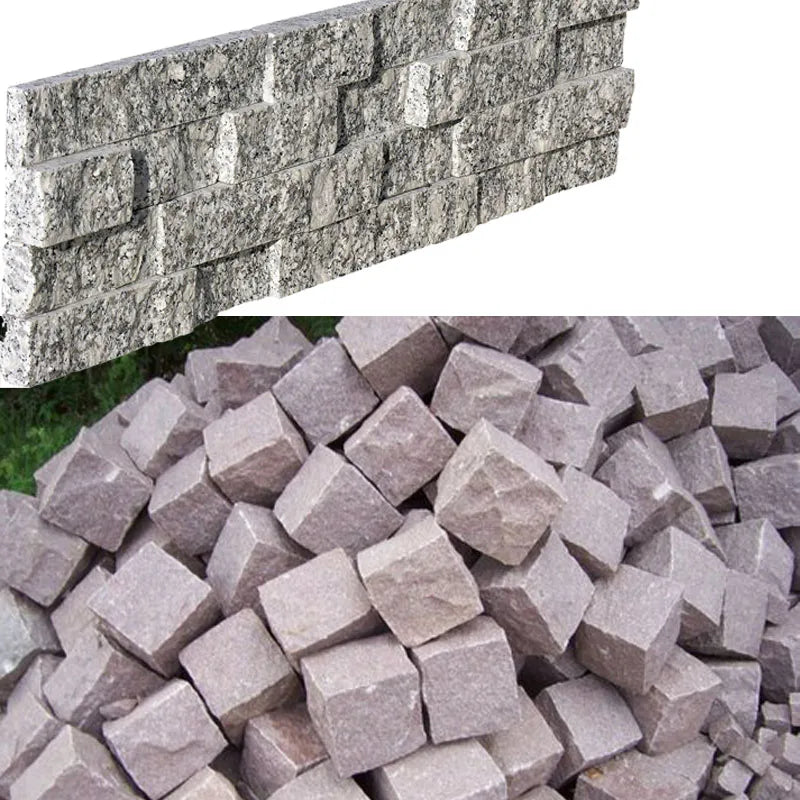

Products produced by hydraulic stone splitter:
