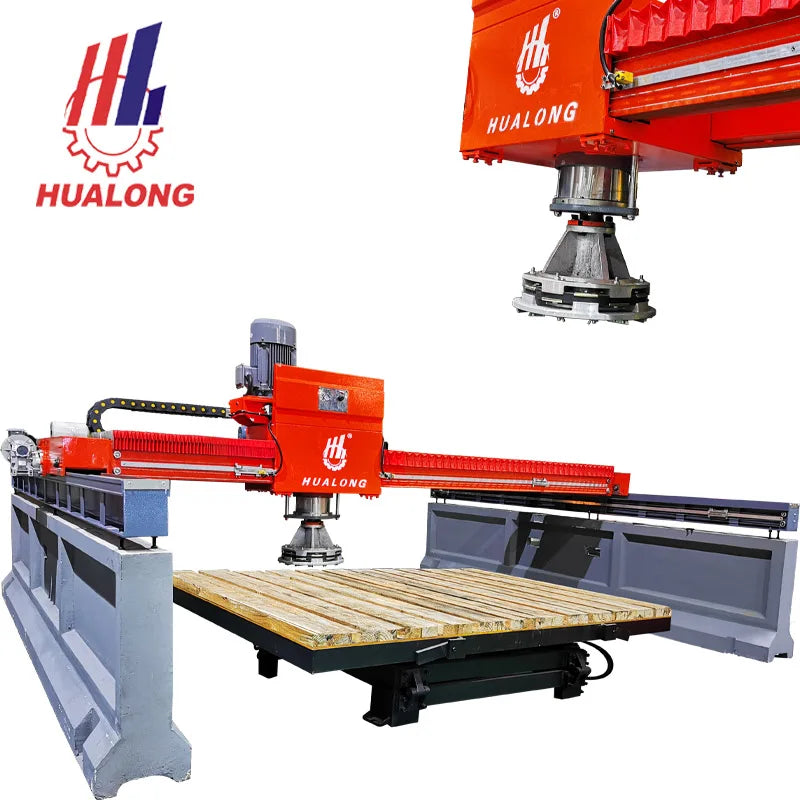

HLDM-1800+ is an updated single head bridge polishing machine with double beams. It's more stable and durable. It's mainly used for granite, marble polsinging, with advantages such as rational construction, steady movement, high accuracy, convenient installation and maintenance.
|
TECHNICAL DATA FOR HLDM-1800+
|
|||
|
Configuration
|
Power of main motor
|
kw
|
11
|
|
Working platform dimensions
|
mm
|
3200 x 2000
|
|
|
Air pressure required
|
Mpa
|
0.3 - 0.5
|
|
|
Main Performance Parameters
|
Max. processing dimensions
|
mm
|
3200 x 3200 x 60
|
|
Working platform tilting degree
|
n°
|
0-85
|
|
|
R.P.M. of polishing head
|
r/min
|
550
|
|
|
X axis feeding speed
|
mm/min
|
5300
|
|
|
Y axis feeding speed
|
mm/min
|
4000
|
|
|
Air consumption
|
m3/min
|
0.15 - 0.3
|
|
|
Water consumption
|
m3/h
|
4
|
|
|
Measurement
|
Gross weight
|
kg
|
7000
|
|
Dimension (L x W x H)
|
mm
|
6000 x 5000 x 2800
|
|
