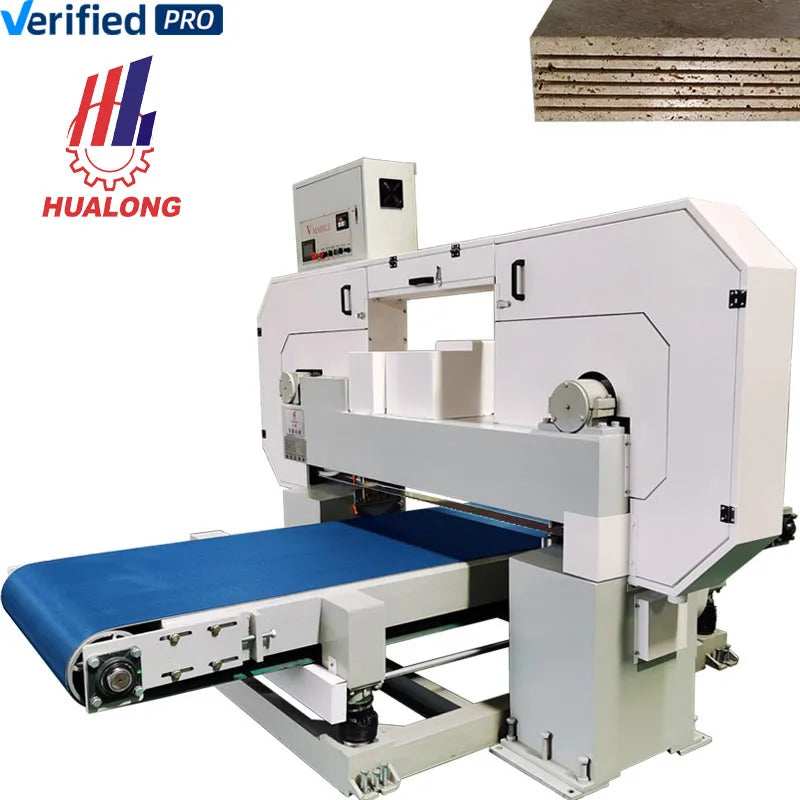

Hualong Machinery HLDP-1800 Stone Processing Band Saw Slicing Marble Thin Slab Horizontal Splitting Machine for Sale

~~$16,900.00美元~~

Sale Sold out

Shipping calculated at checkout.

Marble Slab Splitting Machine

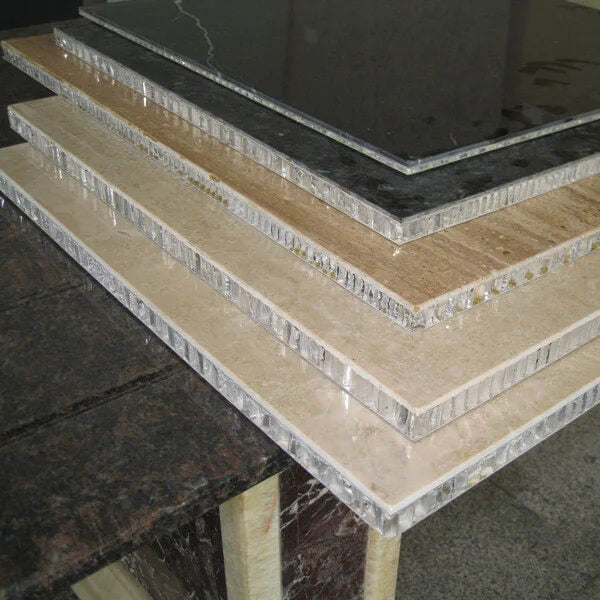

HLDP-1800 is a basic equipment for production of thin marble composite slabs. With band saw blades or diamond wire and automatic convey feeding belt, it can horizontally splite the slab into slices easy, smoothly and high effieciently.

Main Features

* The saw blade tensioning adopts an automatic constant pressure hydraulic device. It has the advantages of uniform strength, stable pressure, longer service life of the saw blade, and convenient operation.
* The slicing thickness can be adjusted by screen setting and controlled by PLC automatically, which make the operation easy and greatly improve the work efficiency.

Technical Data
Model No.		HLDP-1600	HLDP-1800
Max. working width	mm	1650	1850
Max. working thickness	mm	100	100
Max. working length	mm	3050	3100
Cutting speed	mm/min	0-80	0-60
Water consumption	m3/h	1	1
Gross Power	kw	11.92	14
Gross weight	kg	4500	5500
Dimensions ( L x W x H )	cm	350(390)x580x168	370(410)x600x178

Band Saw Blade

It's a flexible steel strip, which not only requires diamond to be inlaid and welded firmly, but also can rotate and bend like a belt.

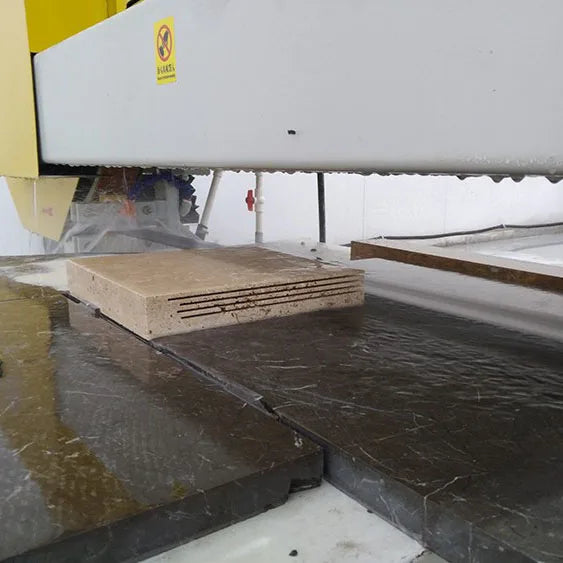

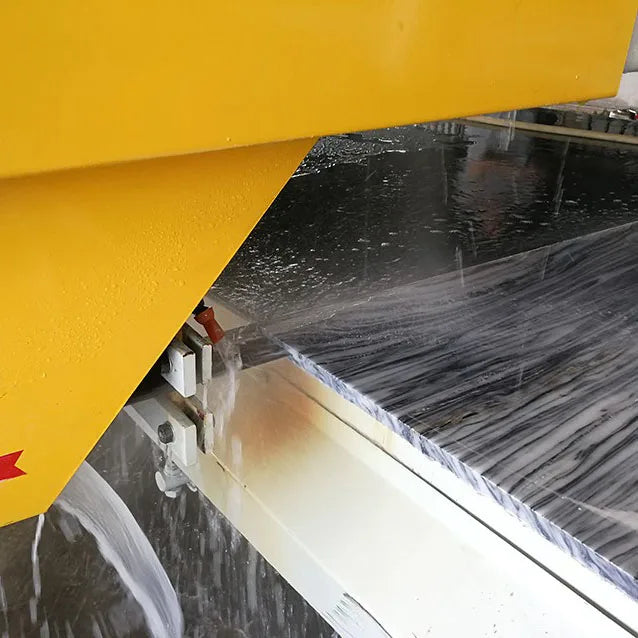

Matched with automatic feeding convey belt, Thin band saw blade with diamond segments can cut the slab into two pieces sharply and
smoothly.

Electric Cabinet

Equipped with quality electrical accessories of China famous brand such as CHNT, WM, the machine can work stably in automatic mode, or manually with some buttons.
