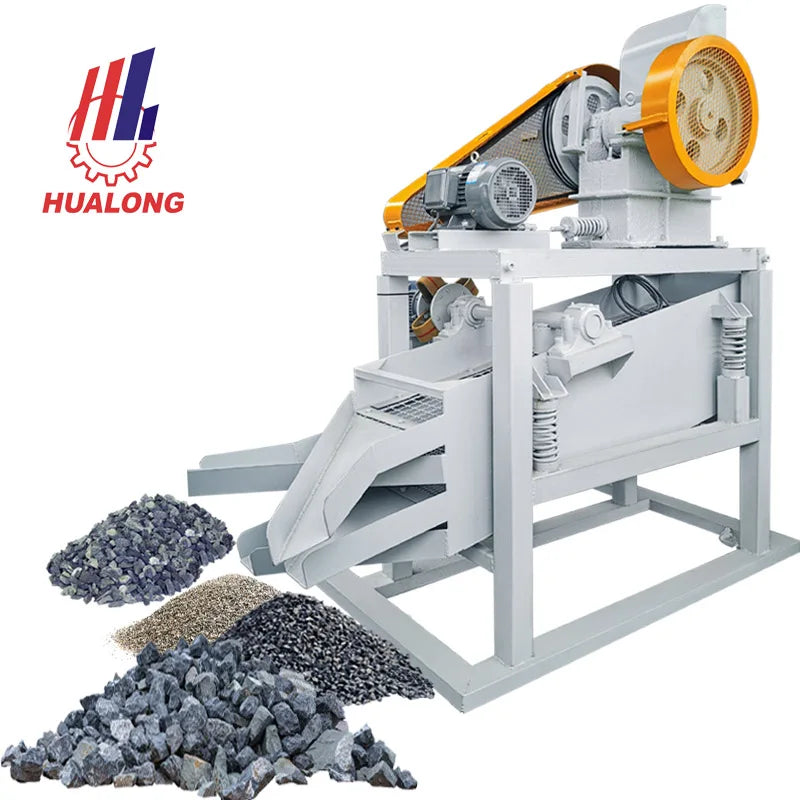

Automatic Screening Small Marble Granite Jaw Crusher Stone Crushing with Vibrating Screen
Automatic Screening Small Marble Granite Jaw Crusher Stone Crushing with Vibrating Screen
- Type : Stone Crushing
- Place of Origin : Fujian, China
- Brand Name : Hualong
- Voltage : 380V 50 Hz.
- Power : 5.1 kW
- Weight : 950 kg
- Warranty : 1 Year
- Key Selling Points : Long Service Life
- Cutting thickness (max) : Other
- Machinery Test Report : Provided
- Video outgoing-inspection : Provided
- Core Components : motor
- Showroom Location : None
- Warranty of core components : 1 Year
- Applicable Industries : Building Material Shops, Home Use, Energy & Mining, Stone Mining, Stone Machining
- Marketing Type : High quality with cheap price
This small crusher has low energy consumption, and is easy to maintain, install and transport. It's good for granite fabricators to recycle waste stones, and also widely used in the industries such as mining, road and railway construction, building construction,water conservation and chemical industry etc.
Jaw Stone Crusher with sieve

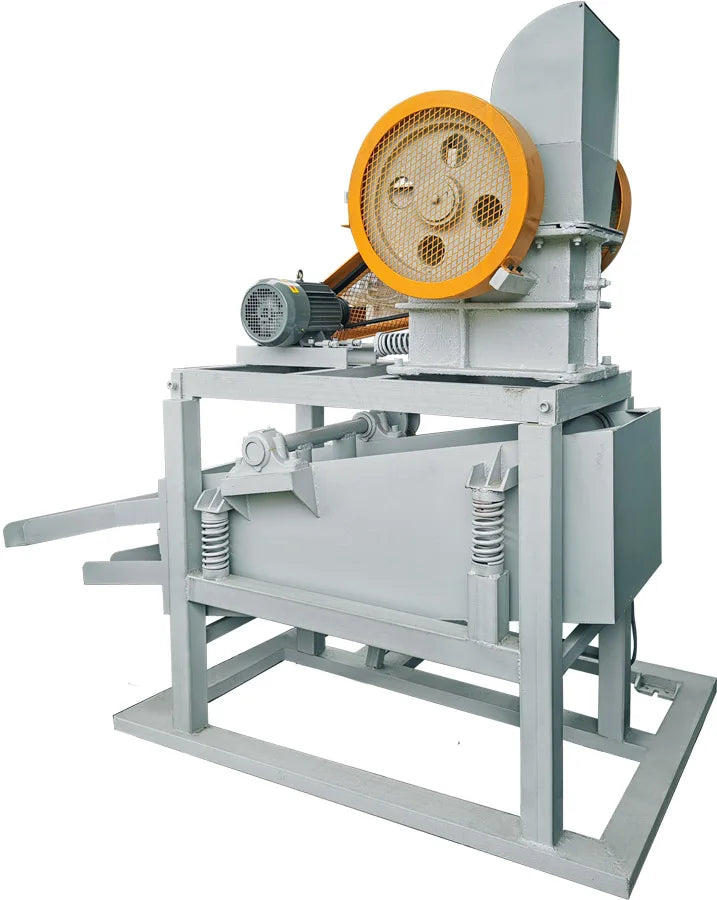

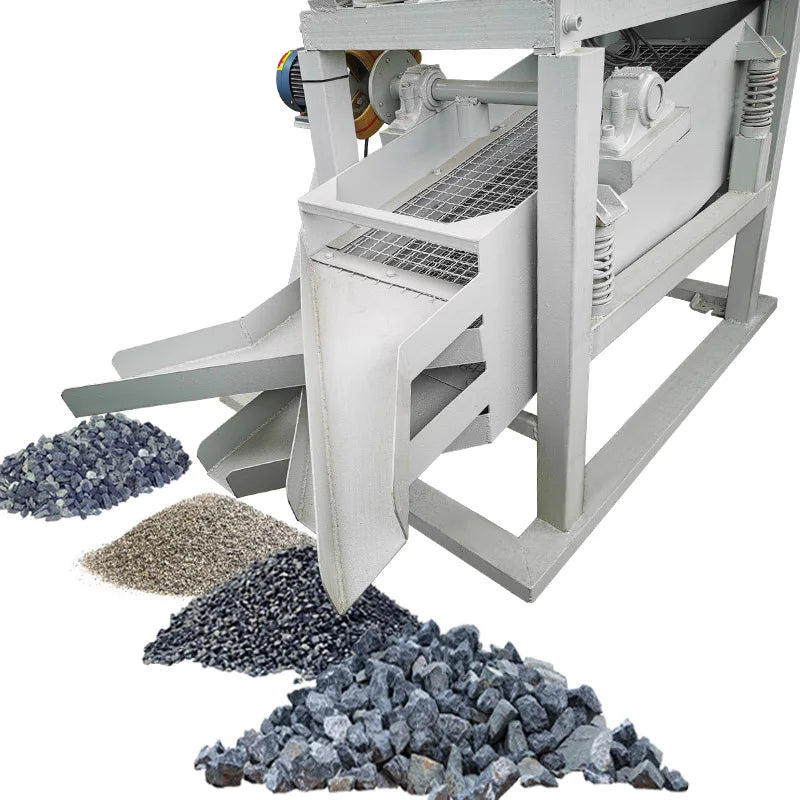

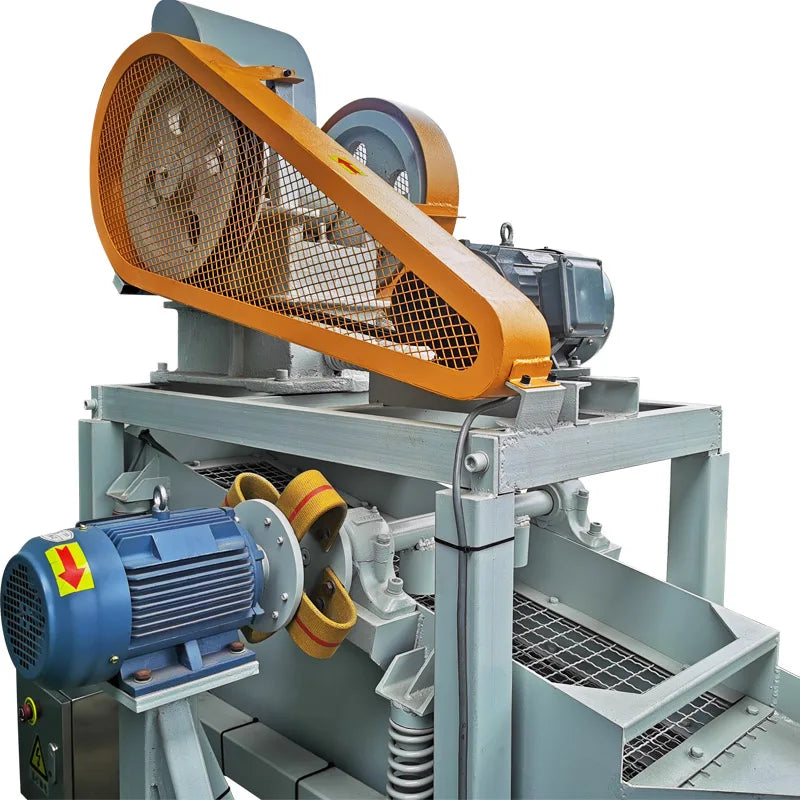

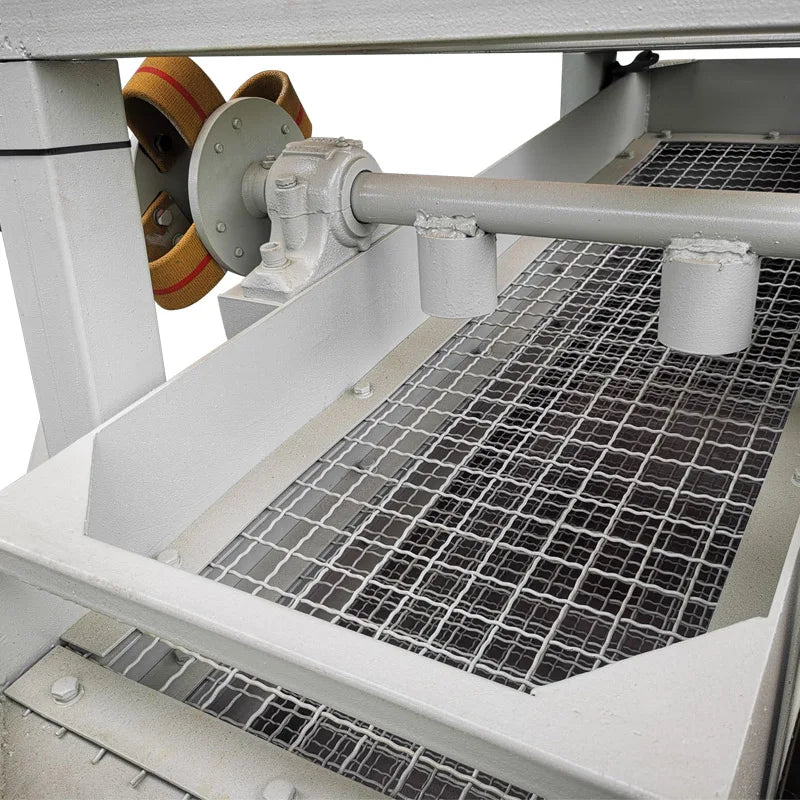

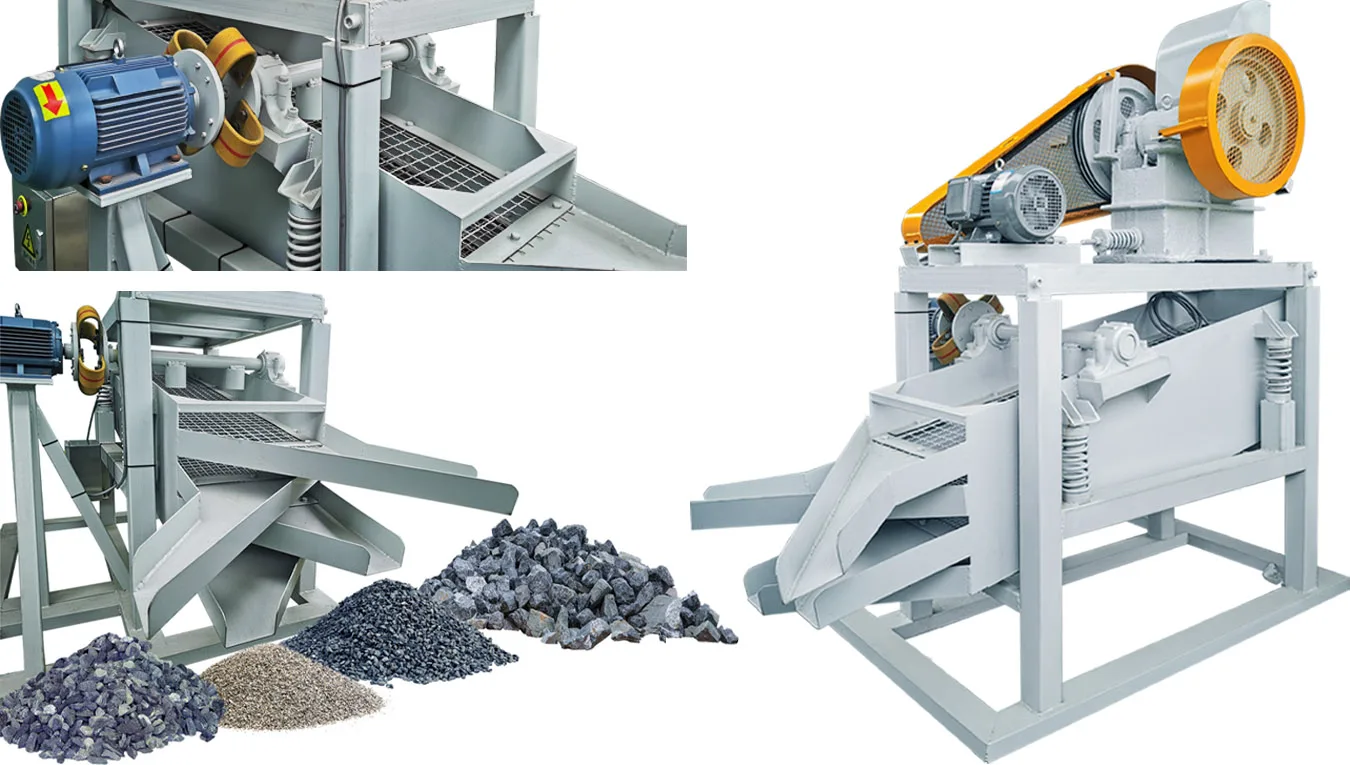

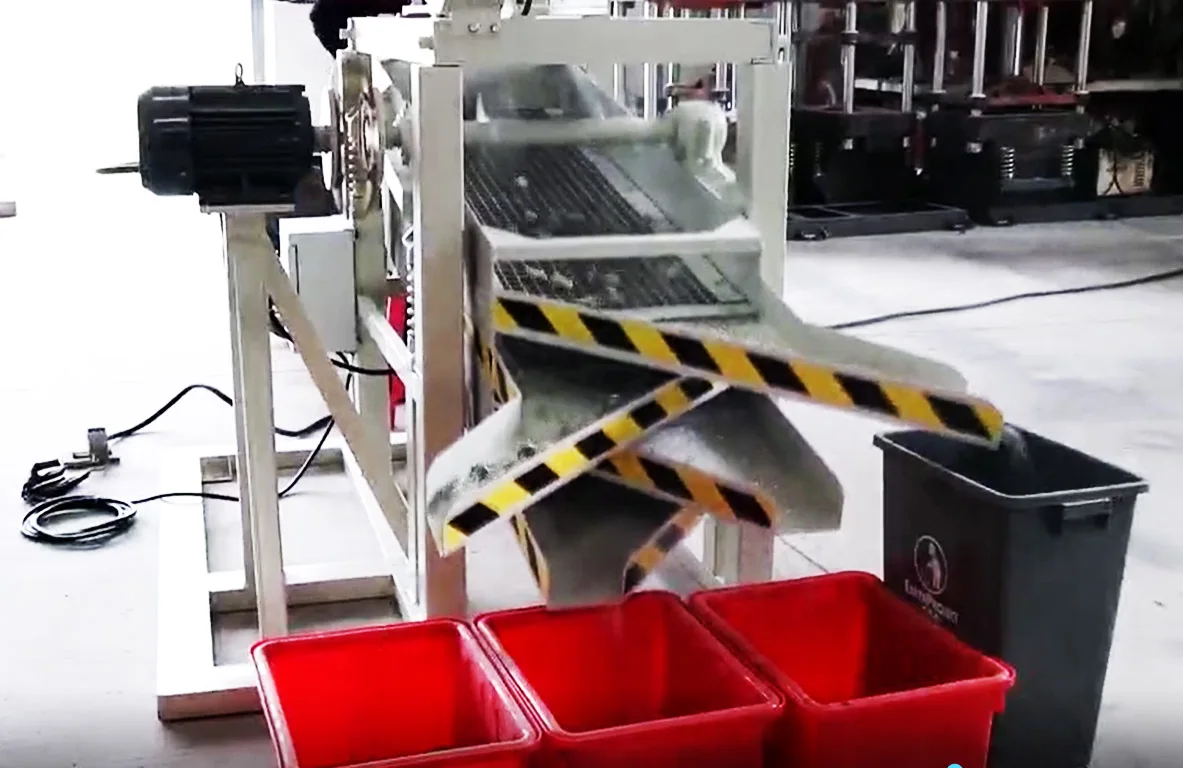

HLSP-1218z is a small jaw crushing machine with 4 layer vibrating screens. which can crush minrals or stones and divide the products crushed into different sizes effectively.
This small crusher has low energy consumption, and is easy to maintain, install and transport. It's good for granite fabricators to recycle waste stones, and also widely used in the industries such as mining, road and railway construction, building construction,water conservation and chemical industry etc.
Applied materials: pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, coal gangue, construction waste, ferrosilicon, basalt, sandstone, rocks, ore, glass, cement clinker and some metal.
Main Features
1, Low noise, fewer dust, high crushing ratio.
2, Large adjusting range of discharge gate
3, Deep crushing cavity with no dead zone, easier to feed materials and yield higher output.
4, Safe and reliable lubricating system makes it easier to replace components, less maintenance.
5, High strenghened magnese steel, features in abrasion resistant, compression resistance, long service time
|
|
Technical Data
|
|||
|
|
Model No.
|
HLSP-1218z
|

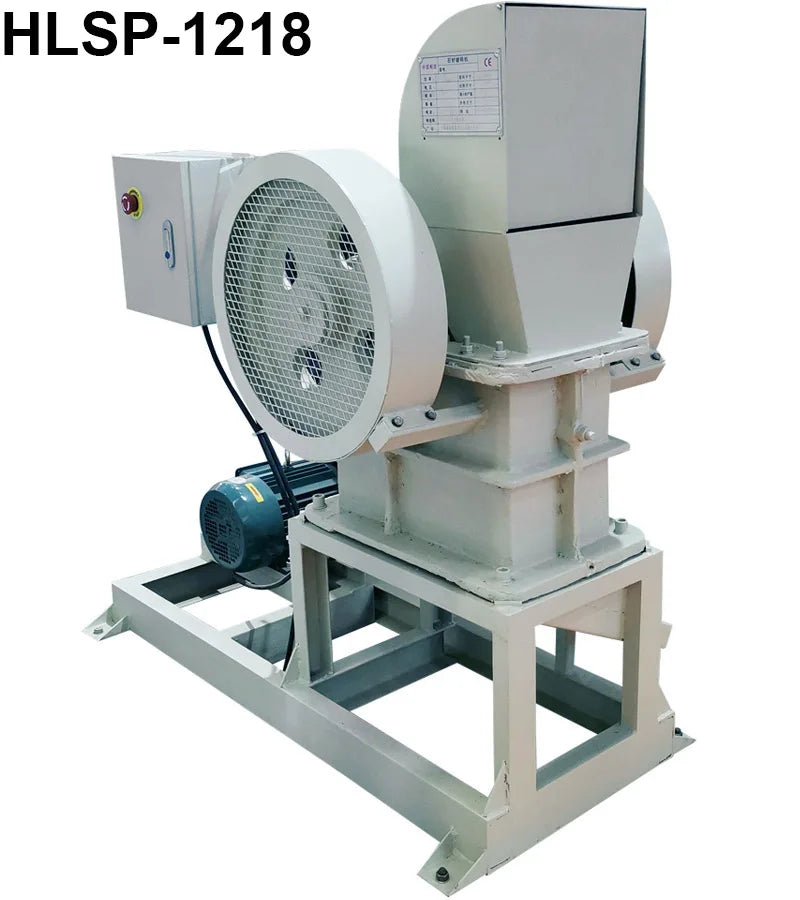

HLSP-1218
|
|
|
|

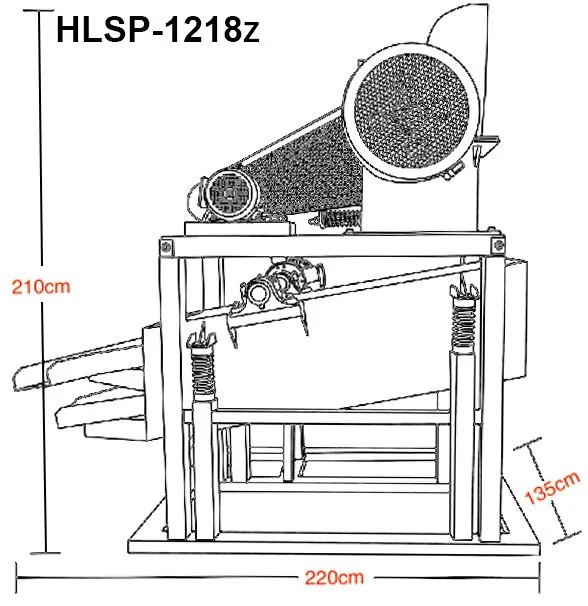

Dimensions ( L x W x H )
|
mm
|
2200x1350x2100
|
1300x670x1360
|
|
|
Power
|
kw
|
5.1
|
4
|
|
|
Voltage / Frequency
|
v / Hz
|
389 / 50
|
380 / 50
|
|
|
Max. Feeding Size
|
mm
|
120 x 180
|
120 x 180
|
|
|
Output Size
|
mm
|
0.5 - 5
|
0-3 x 0-3
|
|
|
Output per Hour
|
Ton/H
|
2
|
2
|
|
|
Net Weight
|
kg
|
800
|
450
|
|
|
Gross Weight
|
kg
|
950
|
550
|
