HUALONG Machinery Siemens PLC Stone Block Cutter Bridge Vertical Horizontal Saw Cross Cutting Machine for Marble Granite

HUALONG Machinery Siemens PLC Stone Block Cutter Bridge Vertical Horizontal Saw Cross Cutting Machine for Marble Granite

Sale Sold out
Shipping calculated at checkout.


  • Type : Stone Cutting Machine
  • Use : Cut block to slabs
  • Production Capacity : High
  • Place of Origin : Fujian, China
  • Brand Name : Hualong
  • Voltage : 380V
  • Power : 62.3kw (gross)
  • Dimension(L*W*H) : 7600 x4500x3800mm
  • Weight : 14000 kg
  • Warranty : 1 Year
  • Key Selling Points : High Productivity
  • Cutting thickness (max) : 650mm
  • Machinery Test Report : Provided
  • Video outgoing-inspection : Provided
  • Core Components : motor, Bearing, Gear, Gearbox, PLC
  • Max.blade diameter : 1600mm
  • Length of cross-bean : 8000mm
  • Cutting length : 3200mm
  • Cutting width : 2000mm
  • Lifting stroke : 1350mm
  • Power of main motor : 75kw
  • Warranty of core components : 2 Year

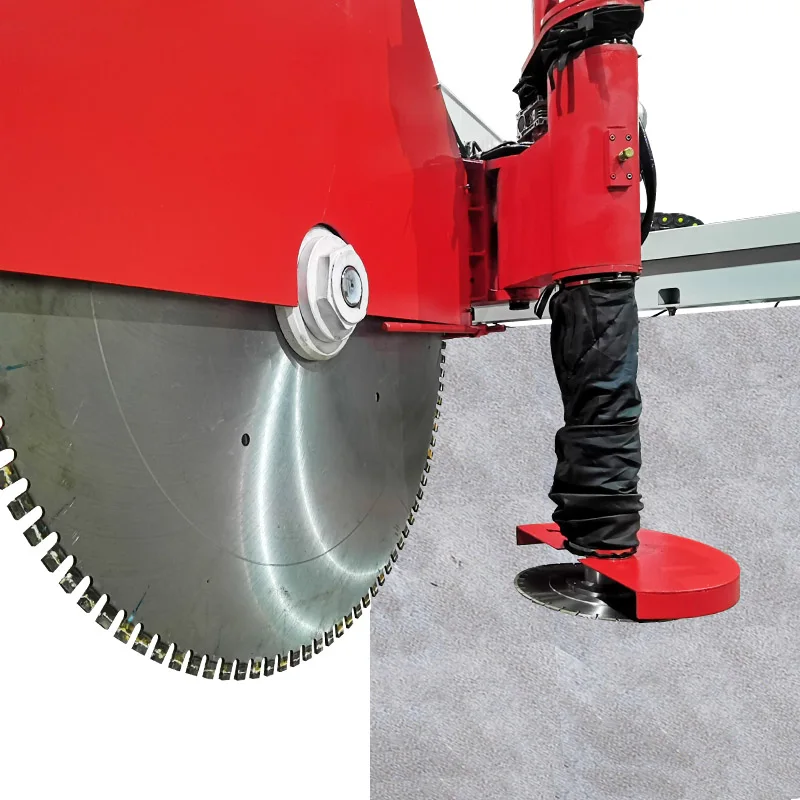

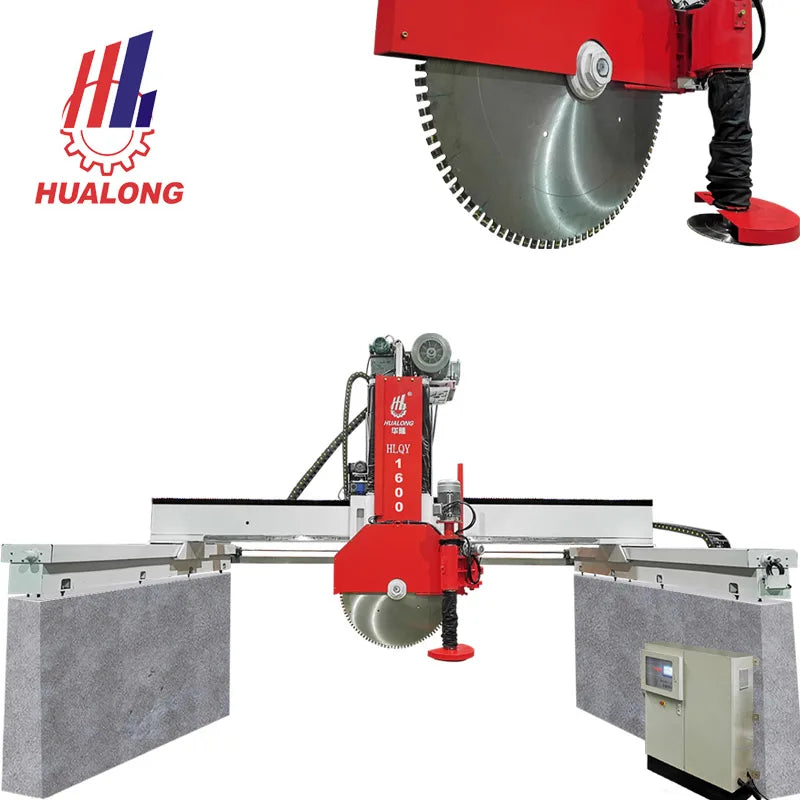

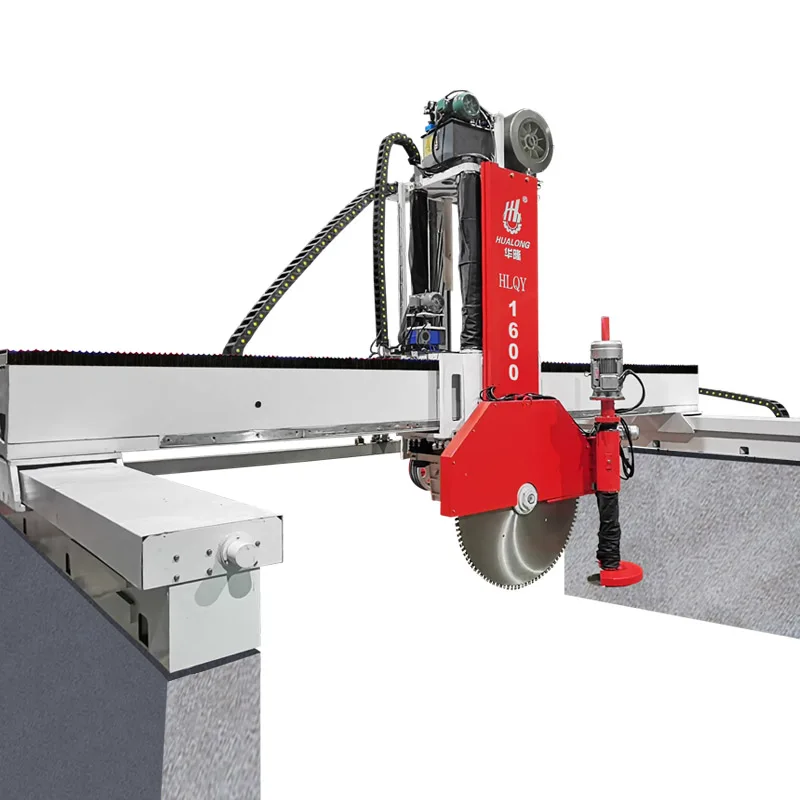

Marble Block Cutter with Horizontal Blade

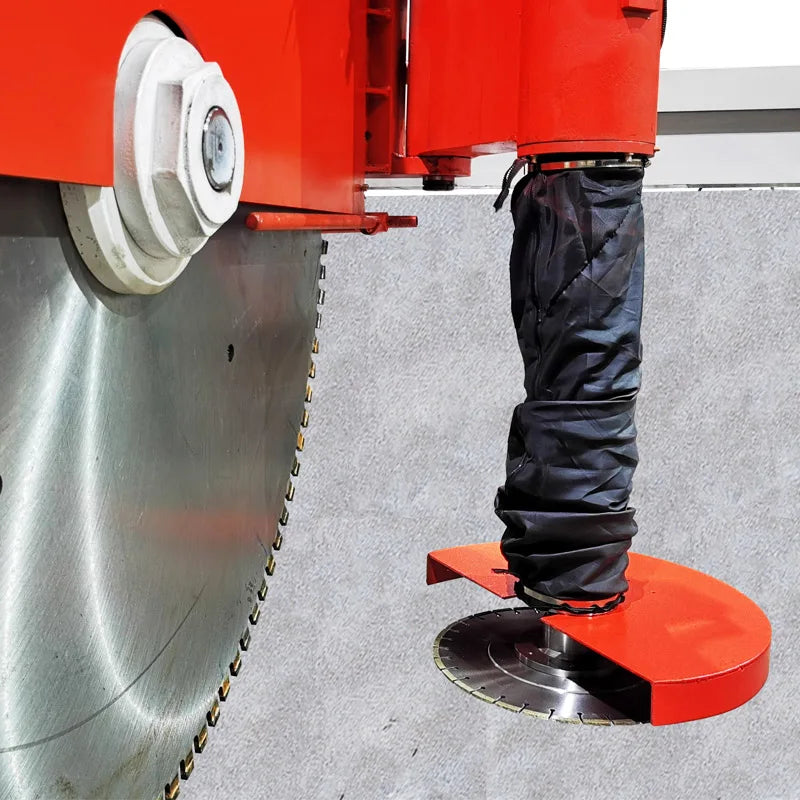

HLQY-1600H is used for cutting granite, lava stone, travertine and marble blocks intto stripes, tiles and stairs by means of a vertical diamond disc and a horizontal disc. It works on stationary block.

It produces 460-650 mm maximum wide strips with thickness dimension from 10 mm for modul granite up to 80 mm for paving stones.

TECHNICAL DATA
Max. vertical Blade Diameter
mm
Φ1600
Max. horizontal Blade Diameter
mm
Φ400
Max. cutting length
mm
3200
Max. cutting width
mm
2000
Max. cutting Height
mm
1300
Max. lifting stroke
mm
1350
Power of spindle motor
kw
75
Power of horizontal blade motor
kw
15
Power of stroke motor
kw
2.2
Power of vertical motor
kw
1.1
Gross power
kw
93.3
Gross weight
kg
14000
Dimensiona(L x W x H)
mm
7600x4500x3800

Main Features

1) Siemens smart PLC control system makes high automation performance and easy to operate.

2) Adopts 4 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.

3) Two-slider frame structure driven synchronized by screw with high stiffness and stability.

4) Sliding system of X and Y axes on linear guides and racks both in oil bath lubrication grants smooth and high production.

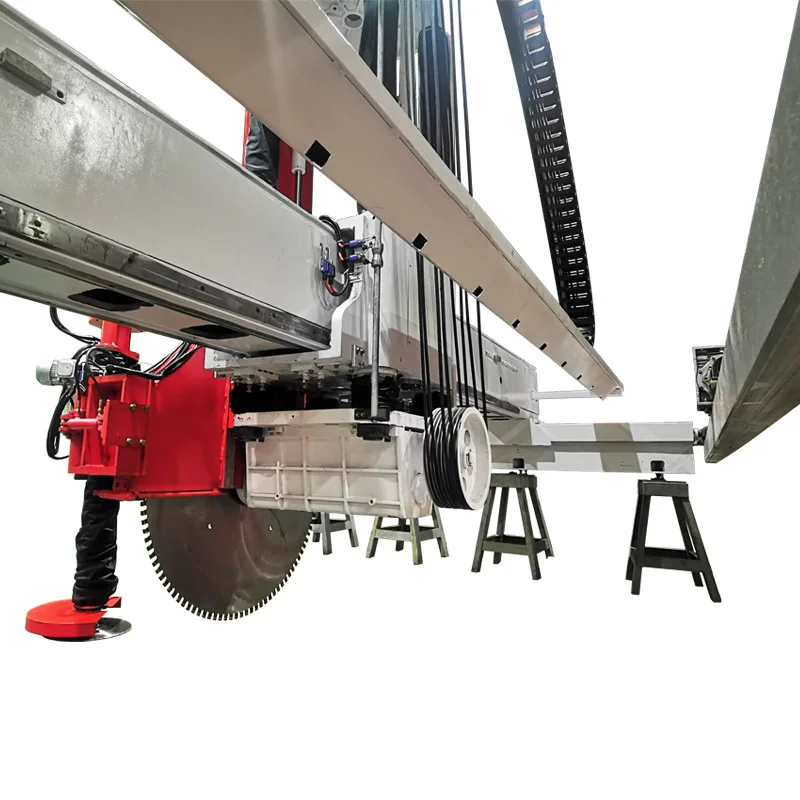

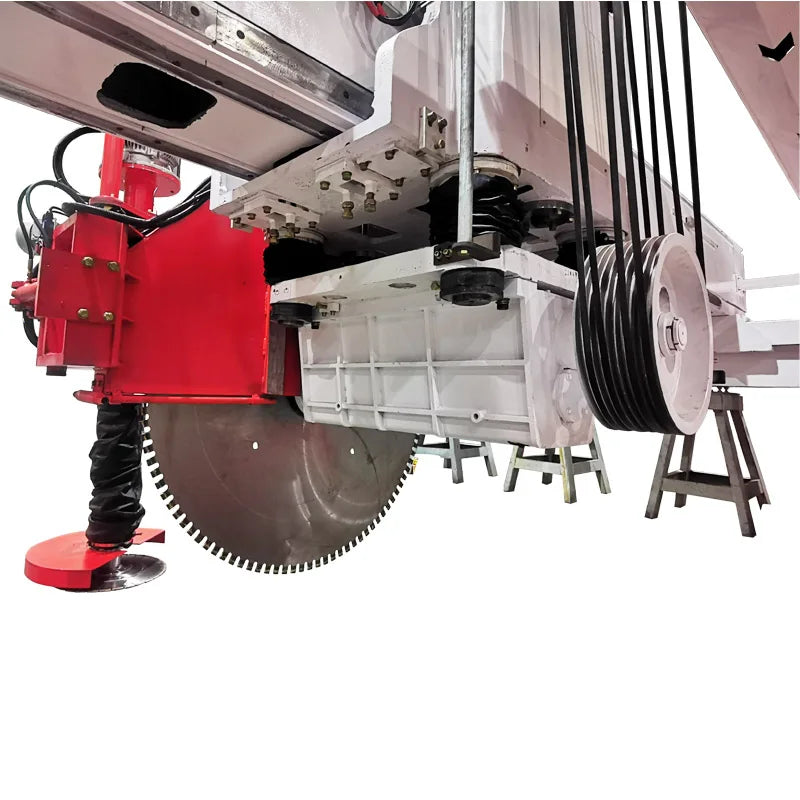

Machine Parts

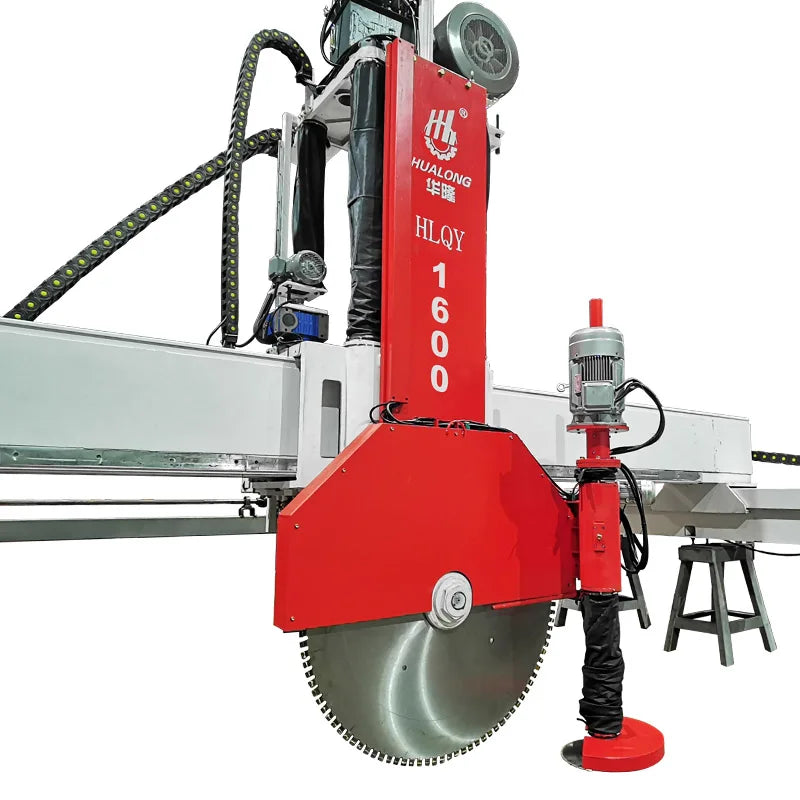

Name: 4 big pilllars

Use: sliding guide for spindle

Strong guides ensure the stalbe work performance of cutting head, which covered by fabric for preventing pollution.

Linear Guide

Brand: Hiwin
Original: Taiwan, China
Famous products, top quality use on crossbeam and carling for good performance.

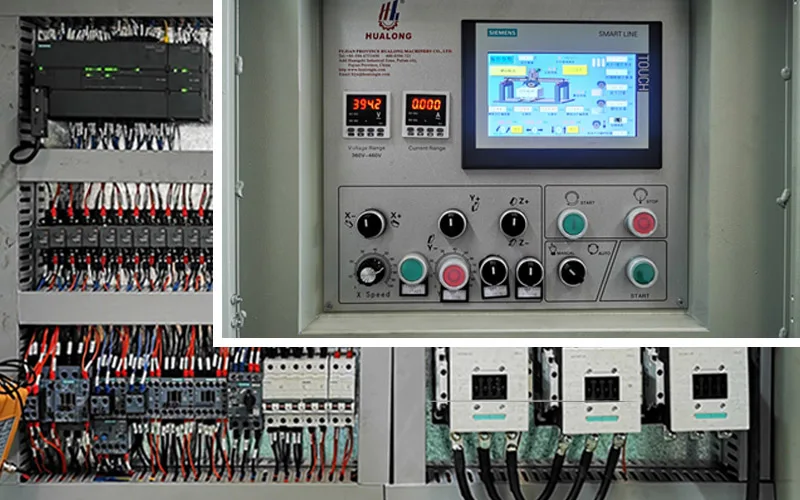

Electronic Control System

Brand: Siemens
Original: Germany

Famous product, equipped for good stability and high automation performance.

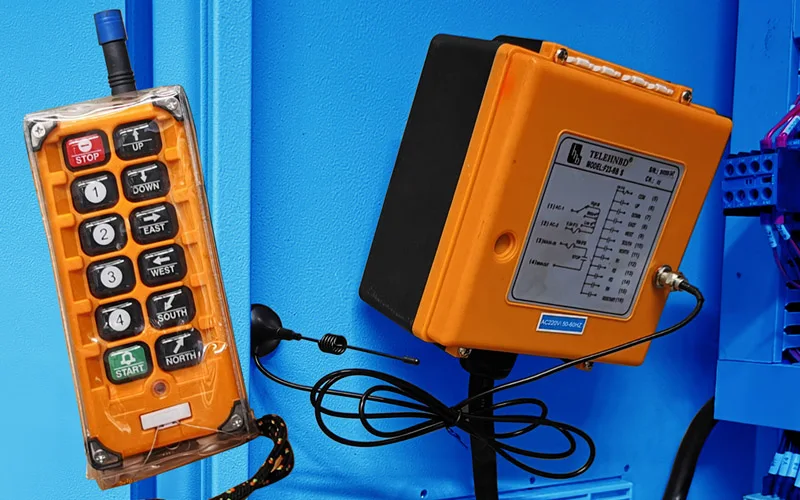

Remote Control

Original: China

Easy and convinient for controlling the movements of 3 axis
