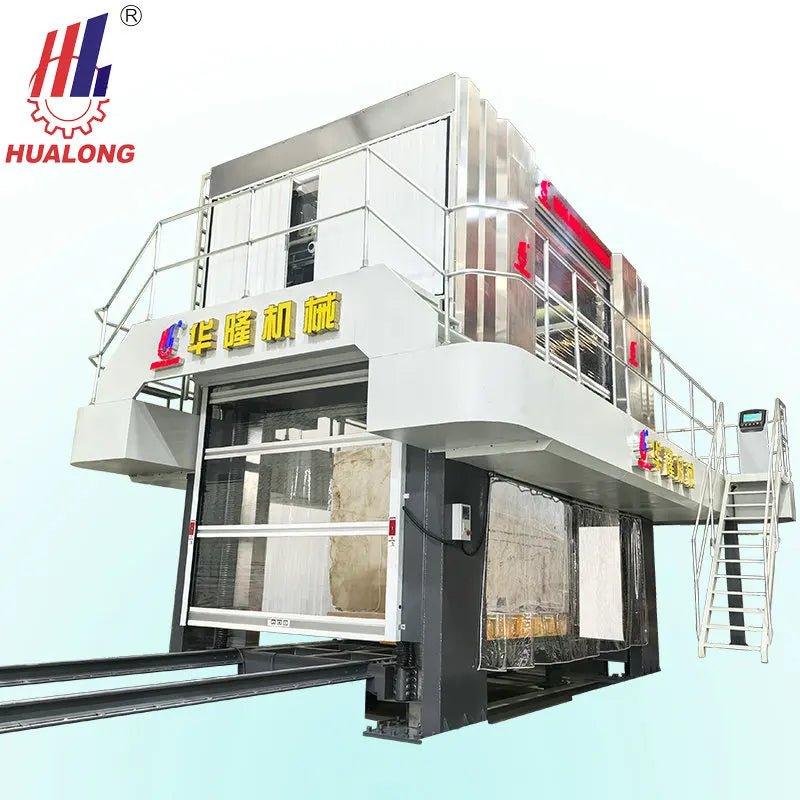

Hualong Stone cutting machine Granite Marble Multiwire saw Block Cutting Machine 72 Multi Wire Saw Machine

~~$230,000.00美元~~

Sale Sold out

Shipping calculated at checkout.

Type : Stone block Cutting Machine
Use : Block cut to slabs
Place of Origin : Fujian, China
Brand Name : Hualong
Voltage : 380V/50Hz
Power : 456 KW
Weight : 45000 kg
Warranty : 1 Year
Key Selling Points : Multifunctional
Cutting thickness (max) : 2100mm
Machinery Test Report : Provided
Video outgoing-inspection : Provided
Core Components : motor, Bearing, Gear, Gearbox
Yield Rate : over 97%
Emission reduction of stone power : over 90%
Noise reduction : over 40dB

Super Thin Multi Wire Saw Machine

HLMW-100/150 Super Thin Multi Wire Saw, an amazing new machine developed by HUALONG Machinery defining the next generation stone block cutting technology, with 0.3-0.8mm thin diamond wire brings yield rate more than 97%. It's the next machine of yours to cut block to slabs for much more benefits as follows:

Main Features:

1) High yield - Tiny wire saws with only 0.4-0.7mm cuting grooves enable a yield of over 97%, 15-20% higher than conventional ones

2) Emission Reduction of Stone Powder: over 90%

3) Noise reduction - No vibration, reduce noise over 40 dB

4) Ultra thin slabs below 10mm can be produced

5) High precision prevent wire marks and improves the slab flatness by 50%

6) Space saving - reduce equipment footprint by more than 30%

Flatness is controlled within +/-0.3mm

Use a level ruler to measure the flatness of the slab.

It can be seen that the light transmittance is very uniform, which indicates that the surface of the slab is very flat.

Machine's structure is suitable for both marble and granite's cutting.

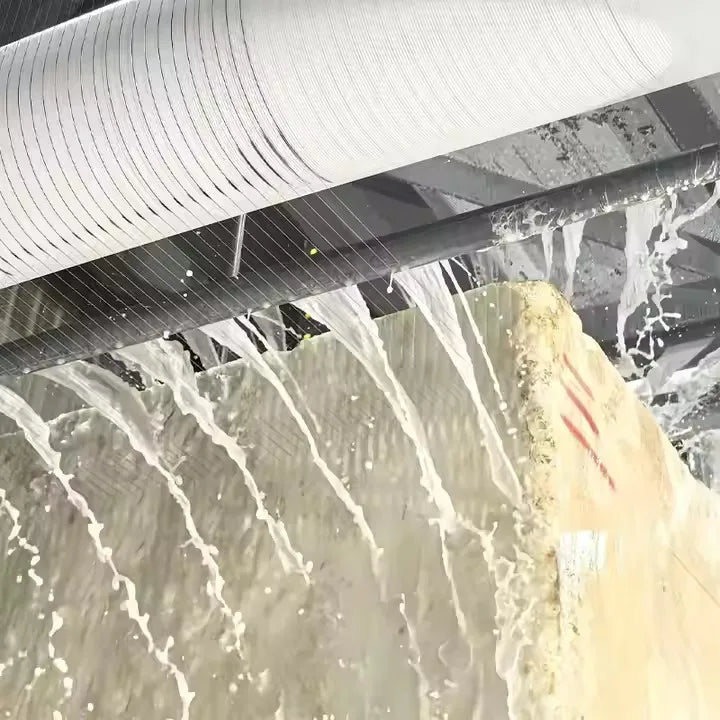

Whether it is cutting marble or cutting granite, the cutting surface is very flat, and the cutting speed is fast.

The output is 15% more than gangsaw and 20% more than traditional wire/rope saw.Because diameter difference means yield difference.HLMW-100/150's diamond wire saw diameter is 0.55mmTraditional diamond multi-wire saw machine is 5.3MMGangsaw belt saw with segments, the thickness is 3.5mm

Diamond wire easy to connect again Using Hualong's unique technology

Basically, the diamond wire doesn't break, if wires happen to break because of the different quartz compositions contained in natural stone, it is easy to connect again without affecting the cutting efficiency.

Super Fine Multi Wire Saw Machine

* Output: 90 pcs/m for 1.08cm thick slabs

* Rate of Output: 98.2%
* Emission Reduction of Stone Powder: 90%
* More smooth surface cutted

Wire roller

30 km or 50km super thin diamond wire can be stored per roller. Each 800m to 1000m wire is released for cutting and
cutting...passivated, and then another length of 800m to 1000m new wire is released for cutting

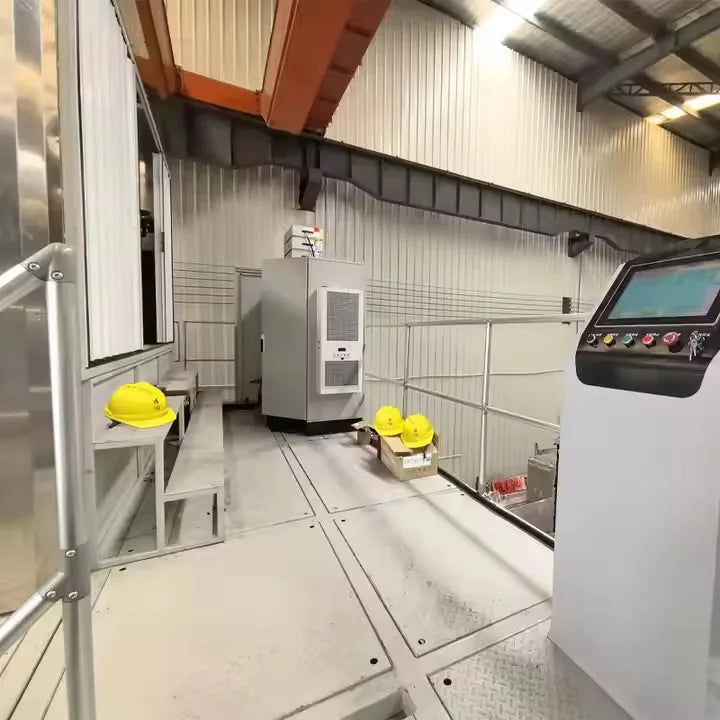

Console

Visual human-computer interactive

operating system, clear at a glance, easy to use

Electric Control Cabinet

INOVANCE advanced multi-machine drive inverters and servo system complete solution are adopted to secure smooth and reliable
performance

Technichal Data for HLMW-100/150
Max. volume of Stored lines	km	80
Operating line Speed	m/s	25 - 40
Ascending & descending form		wire down pressure
Spindle cooling system		liquid cooling
Diameter of diamond wire	mm	0.3-0.8mm
Thickness of slabs cutted	mm	5-30mm
Max. spindle speed	rpm/min	15000
Max. cutting length	mm	3000
Max. cutting height	mm	2000
Max. dimensions of block processable	mm	3300x2000x2000
Main motor power	kw	60*4
Gross power	kw	453
Machine dimensions	mm	7800x4800x6580
