Stone Machinery Infrared Automatic Bridge Saw Stone Cutting Machine

~~$21,500.00美元~~

Sale Sold out

Shipping calculated at checkout.

Type : Stone Cutting Machine
Use : Marble
Production Capacity : 30 sets/month
Place of Origin : Fujian, China
Brand Name : Hualong
Power : 18.5kw
Dimension(L*W*H) : 6000*5000*2800mm
Weight : 6100 kg
Warranty : 1 Year
Cutting thickness (max) : 3500mm
Machinery Test Report : Provided
Video outgoing-inspection : Provided
Core Components : motor, Bearing, Gear
Certification : CE Certificate
Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works
Showroom Location : None
Condition : New
Marketing Type : Ordinary Product
Warranty of core components : 1 Year

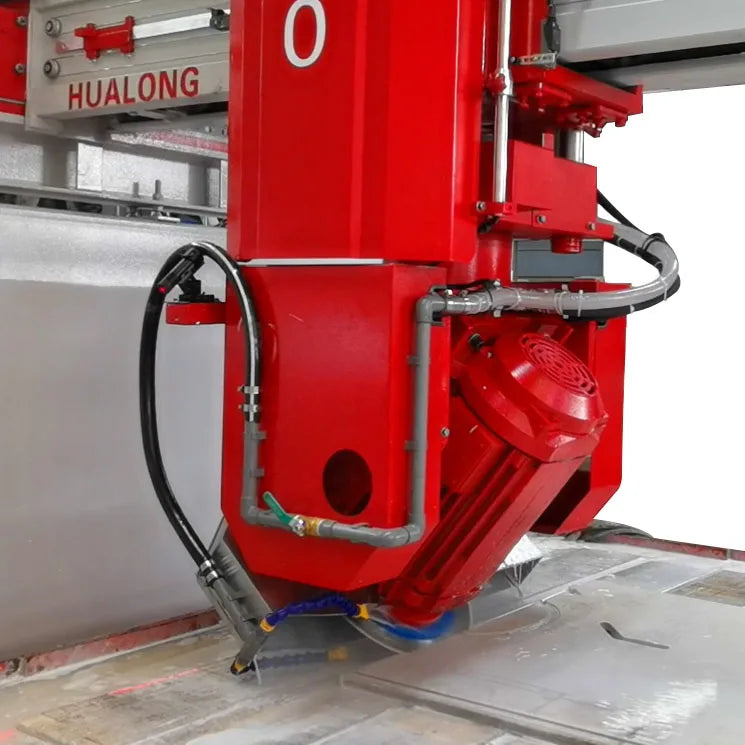

Stone Bridge Saw

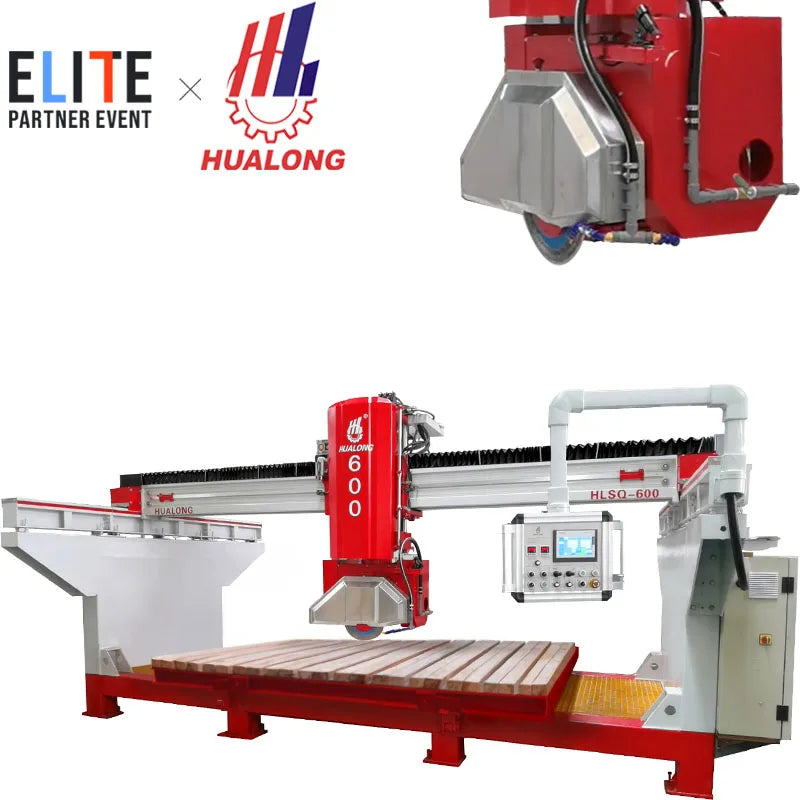

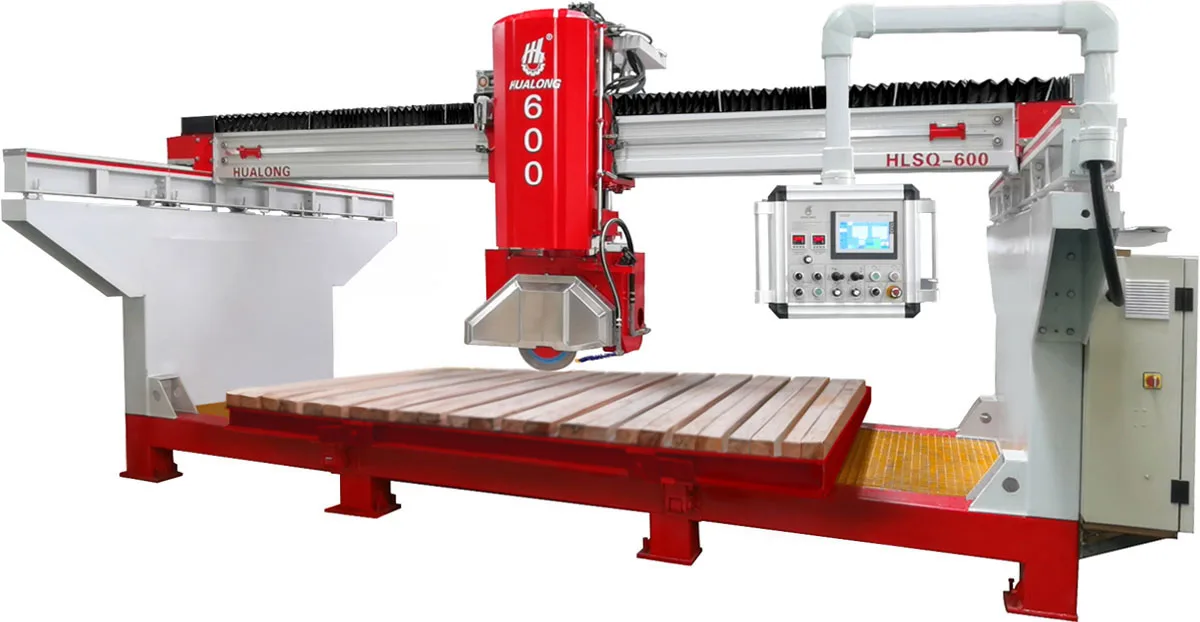

Hualong HLSQ-600 is a monoblock stone bridge saw for slab cutting to size. It's mounted with Siemens PLC, easy to operate. It can also make 45 degree chamfering cutting.

This is a basic, economical and durable stone processing machine with strong practicality.

Technical Data
Item No.		HLSQ-450	HLSQ-600
Blade diameter	mm	300-450	350-600
Blade rotation degree	°	90	90
Blade tilting (Optional)	°	45	45
Max. processing size	mm	3200x2000x100	3200x2000x170
Worktable size	mm	3200x2000	3200x2000
Worktable tilt	°	0-85	0-85
Water consumption	m³/h	3	3
Power of main motor	kw	15	18.5
Gross power	kw	20.5	24
Gross weight	kg	6500	6750
Dimension (L x W x H)	mm	5850x3500x2650	5850x3500x2950

Main Features

1) Monoblock steel fram, simple to intall, no foundation needed.
2) Easy to operate, good stability and low maintenance cost.

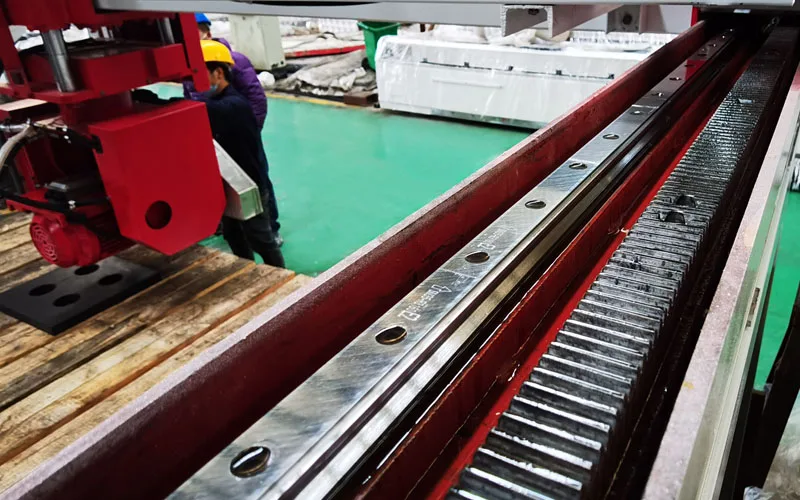

3) Magnetic grid ruler adopted for positioning accuracy and ensure high processing precision.

4) Left-right feeding is controlled
by Inverter and the speed is adjusted according to stone material.
5) Hydraulic lifting system equip through 4 guide posts for cutting steady.
6) Blade tilt 45° for chamfering,
7) Worktable can tilt 85 degree for for easy slabs loading.

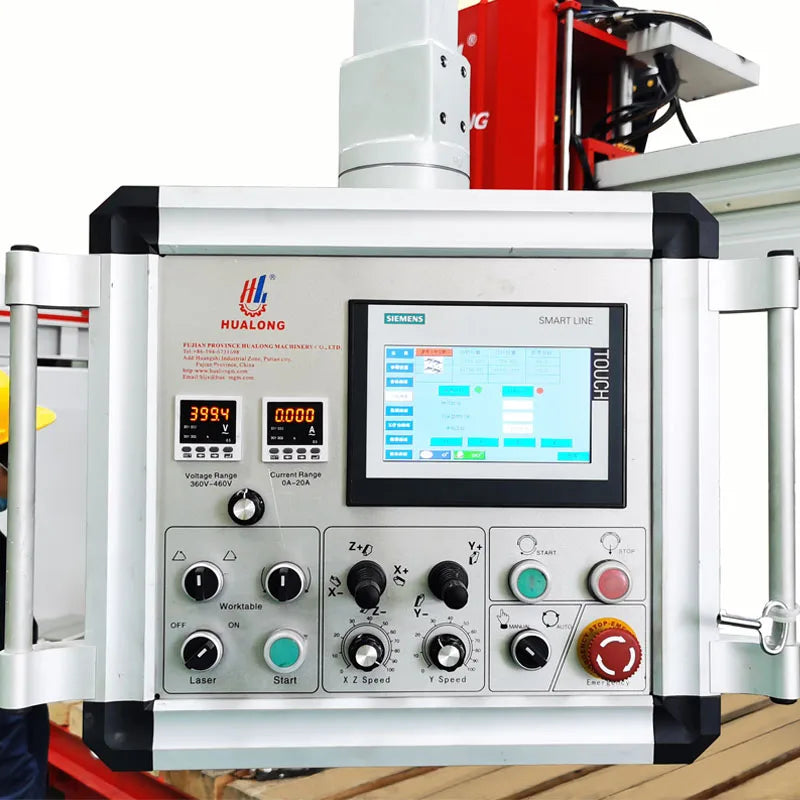

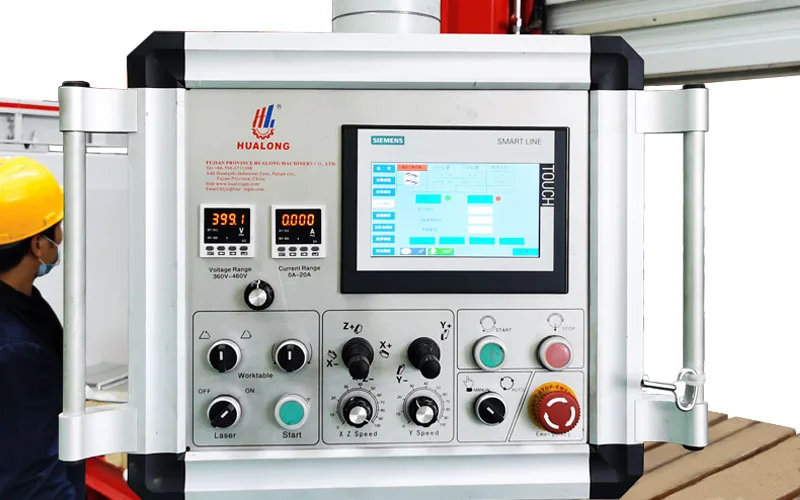

Control system -- PLC

Brand: Siemens

Original: Germany

PLC control and intuitive interface make operation easy.

Siemens touch screen for data setting friendly for automatic processing.
Both manual and automatic operation available.

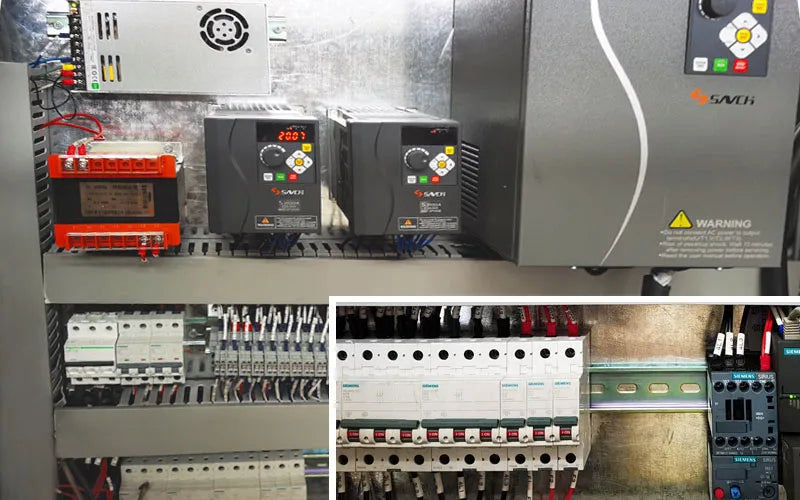

Electric & Control Components

Brand: Siemens, Schneider, Sanch...

Quality electrics used to ensure stable performance..
