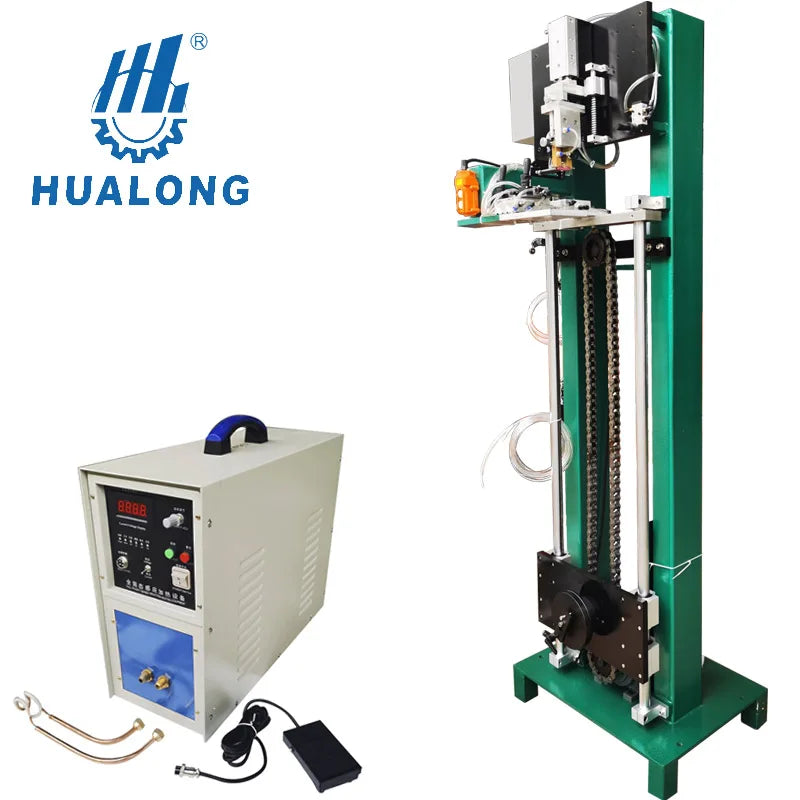

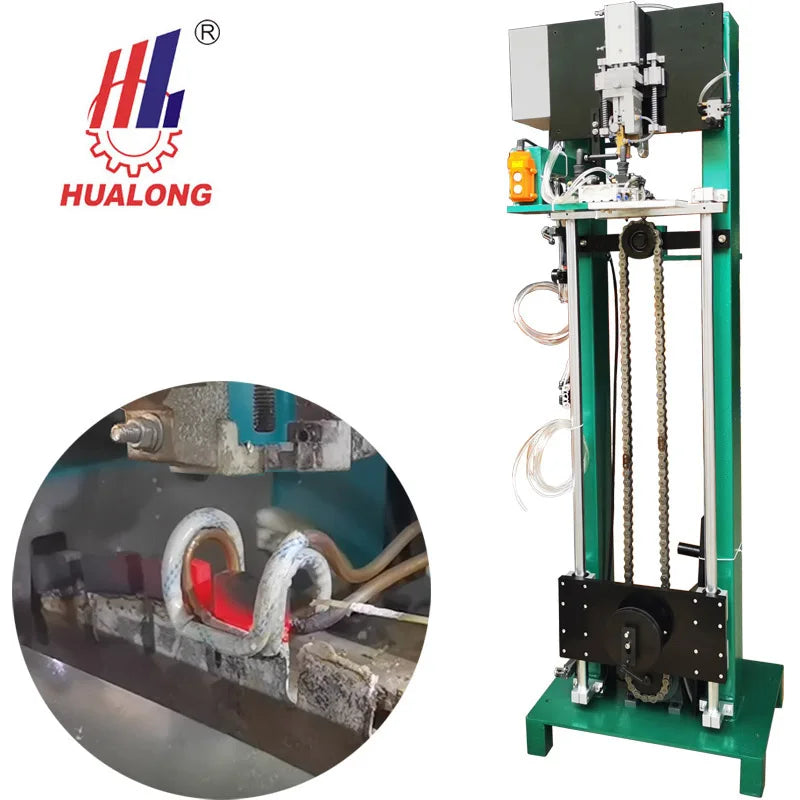

High Frequency Induction Welding Rack Stand Brazing Machine Frame for Stone Saw Blade

~~$3,800.00美元~~

Sale Sold out

Shipping calculated at checkout.

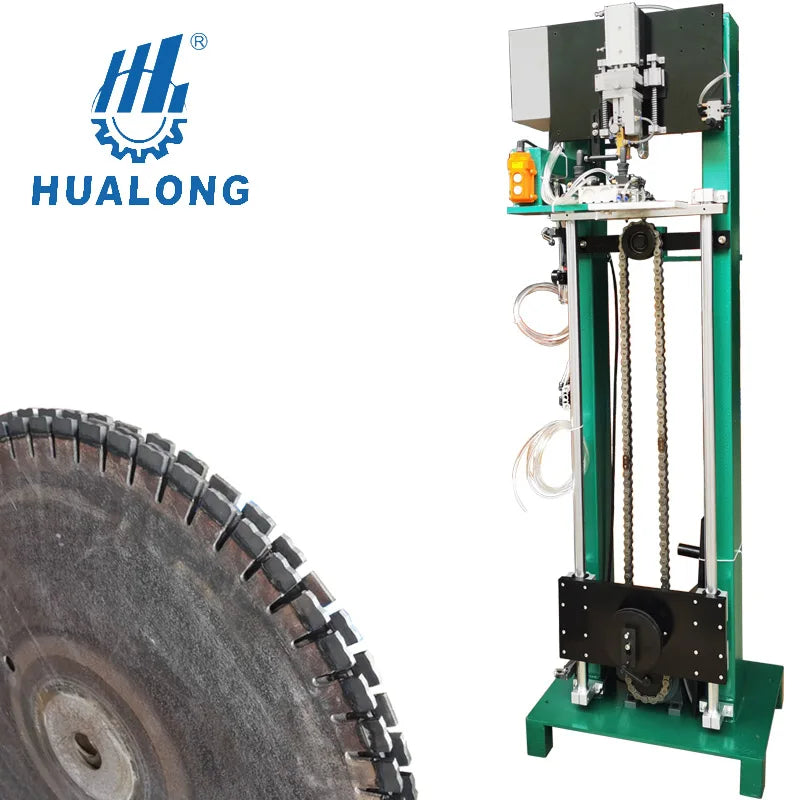

Semi Automatic Saw Blade Segment Brazing Frame

This brazing frame is a semi-automatic welding machine with PLC control system. It's used for welding diamond circular saw blade from ø300mm to ø2500mm. Segments, silver welding solder and soldering flux need to be sent manually, With human assisted segments positioning system, other welding process will be finished automatically.

It is a popular diamond saw blade welding auxiliary equipment for its positioning accuracy, stability, and long service life.

Features at A Glance：

1. Welding diameter range can be adjusted ;
2. Welding frame structure is compact and reliable ;
3. High efficiency and accuracy,low energy consumption ;
4. High level of automation, good stability, long service life ;

Systems Intergrated:

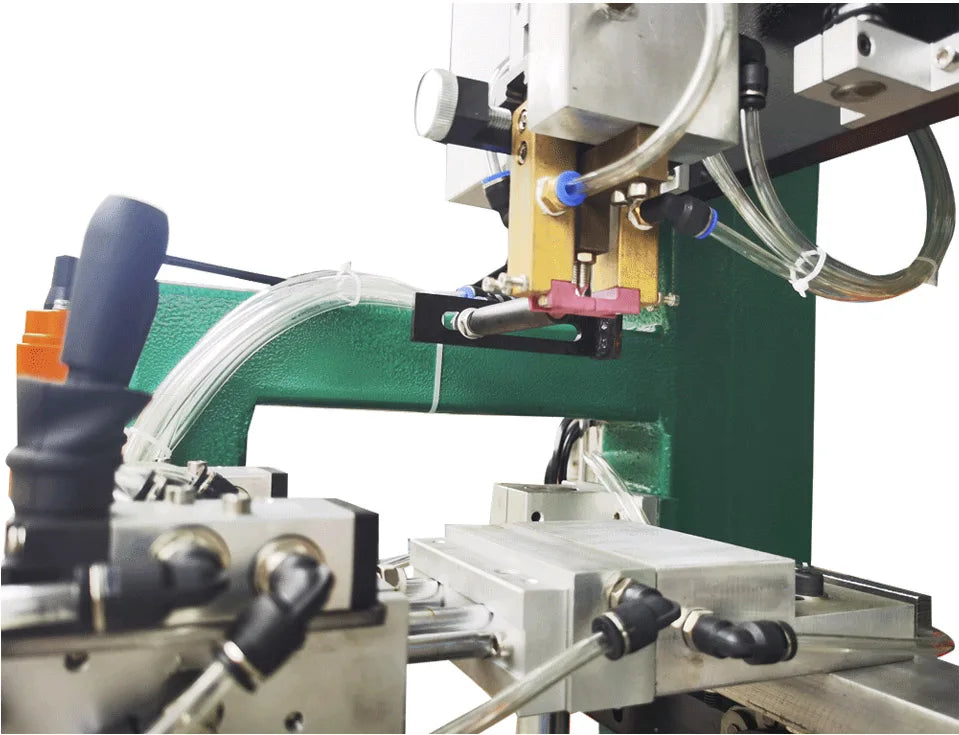

1, Segment automatic Fixing System
2, Segment manually centering system
3, Manual segment separating system

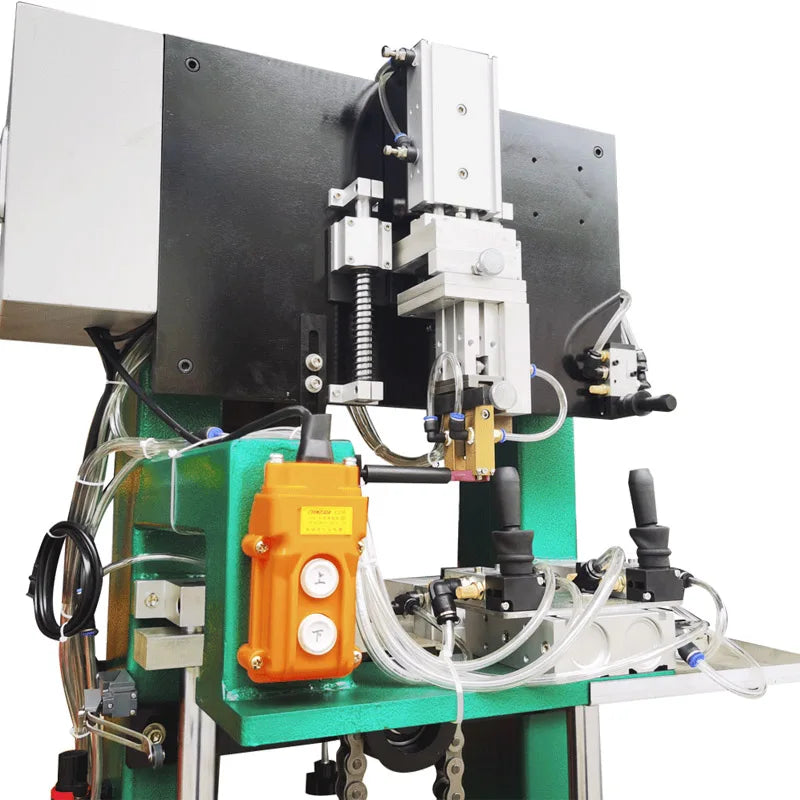

4, One button control system

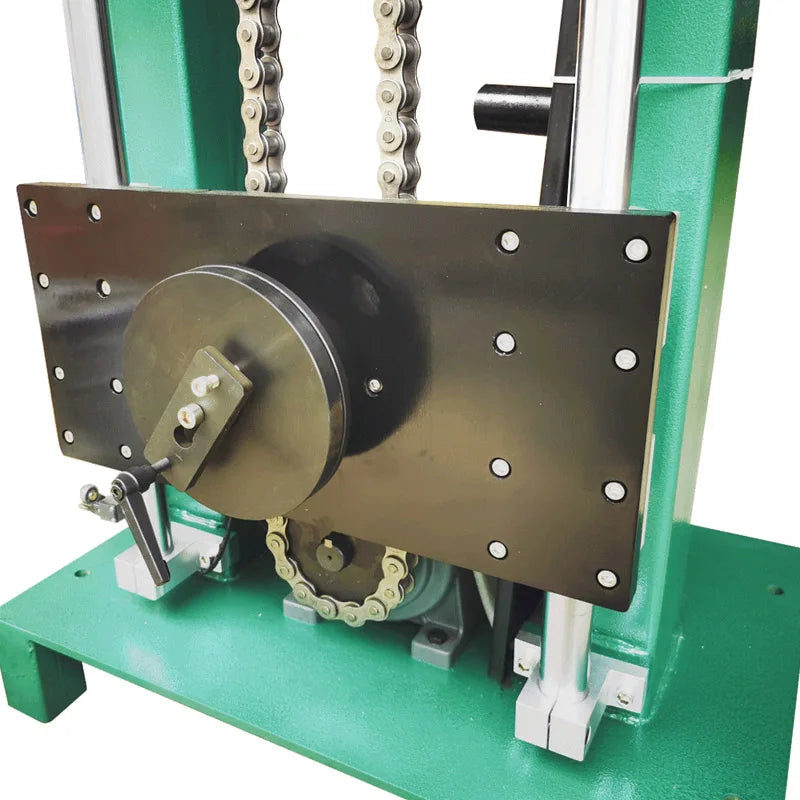

5, Blade lock protraction system

Technical Paramter
Welding Saw Blade Diameter	300 - 2500 mm
Wedding Segments Thickness	1 - 15 mm
Welding Accuracy	+/- 0.02 mm
No-load speed	13,000 rpm
Voltage	380 V / 50 Hz
